1580495
LTBPhoenix Contact
CONN HOOD TOP ENTRY DUAL SZB16
1580495
LTBPhoenix Contact
CONN HOOD TOP ENTRY DUAL SZB16
Description
General part information
1580495

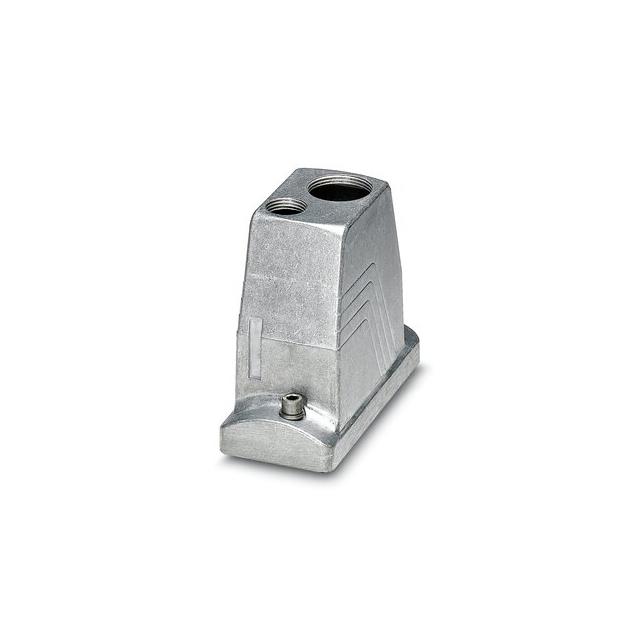

Hood Connector Top Entry, Dual M20 and M32 B16 IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Technical Specifications
Parameters and characteristics for this part
| Specification | 1580495 |
|---|---|
| Connector Type | Hood |
| Features | Salt Water Resistant |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP69K, IP68, IP66 |
| Lock Location | Screw Locks on Hood |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B16 |
| Size / Dimension Height | 3.937 in |
| Size / Dimension Length | 4.961 in |
| Size / Dimension Width | 2.244 in |
| Style | Top Entry, Dual |
| Thread Size | M32, M20 |
