24024052220

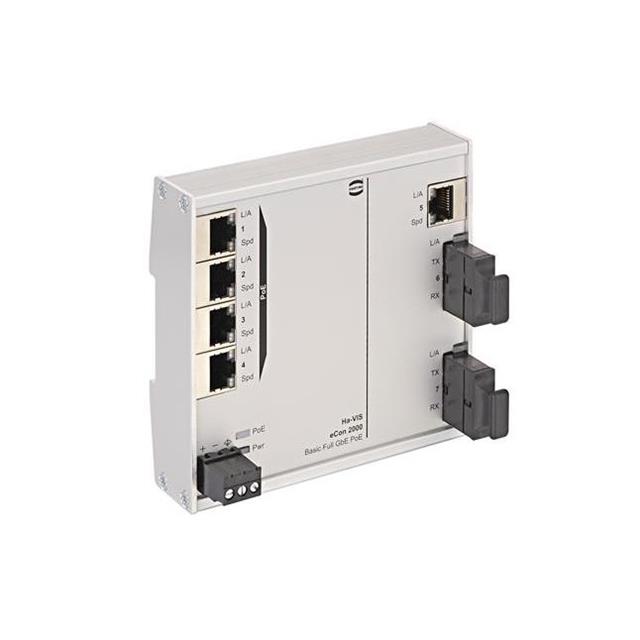

Network Switch - Unmanaged 7 Ports IP30
Technical Specifications
Parameters and characteristics for this part
| Specification | 24024052220 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45, SC |
| Copper Ports | 5 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Fiber Ports | 2 |
| Ingress Protection | IP30 |
| Mounting Type | DIN Rail |
| Number of Ports | 7 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| PoE Ports | 4 |
| Type | Switch - Unmanaged |
| Voltage - Input (DC) Maximum | 60 VDC |
| Voltage - Input (DC) Minimum | 9 VDC |
