3240145
ActivePhoenix Contact

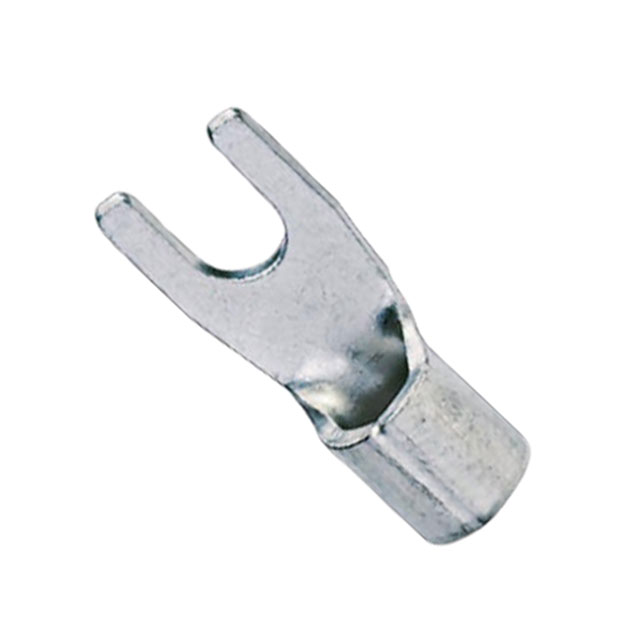

CONN SPADE TERM 14-16AWG M5
3240145
ActivePhoenix Contact
CONN SPADE TERM 14-16AWG M5
Description
General part information
3240145
M5 Stud Spade Terminal Connector Crimp 14-16 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3240145 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall | 0.63 in |
| Length - Termination | 0.189 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M5 Stud, M5 |
| Terminal Type | Standard |
| Termination | Crimp |
| Tongue Inside Opening | 0.209 in |
| Width - Outer Edges | 0.315 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
