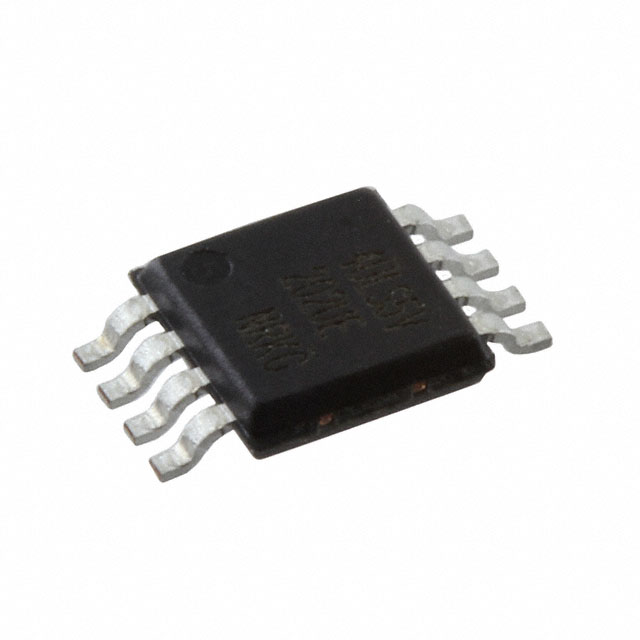

PI4ULS5V202UE
ObsoleteDiodes Inc
2-BIT BI-DIRECTIONAL LEVEL SHIFTER W/ ULTRA TINY PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
PI4ULS5V202UE
ObsoleteDiodes Inc
2-BIT BI-DIRECTIONAL LEVEL SHIFTER W/ ULTRA TINY PACKAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI4ULS5V202UE |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 2 |
| Data Rate | 20 Mbps |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Tri-State, Non-Inverted |
| Package / Case | 8-UFDFN |
| Supplier Device Package | 8-UDFN (1.6x1.2) |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 5.5 V |
| Voltage - VCCA [Min] | 1.2 V |
| Voltage - VCCB [Max] | 5.5 V |
| Voltage - VCCB [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI4ULS5V202 Series
2-Bit Bi-Directional Level Shifter w/ Ultra Tiny Package
