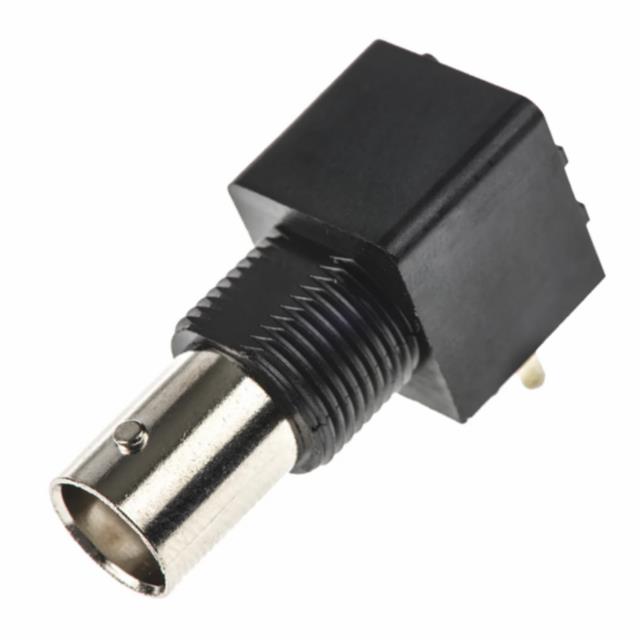

5121247C106
ActiveEase Electronics
CONN BNC JACK 50 OHM PCB
5121247C106
ActiveEase Electronics
CONN BNC JACK 50 OHM PCB
Description
General part information
5121247C106
BNC Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Push On
Technical Specifications
Parameters and characteristics for this part
| Specification | 5121247C106 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Push On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Feature | Bulkhead |
| Mounting Type | End Launch, Board Edge |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -50 °C |
| Shield Termination | Push On |
