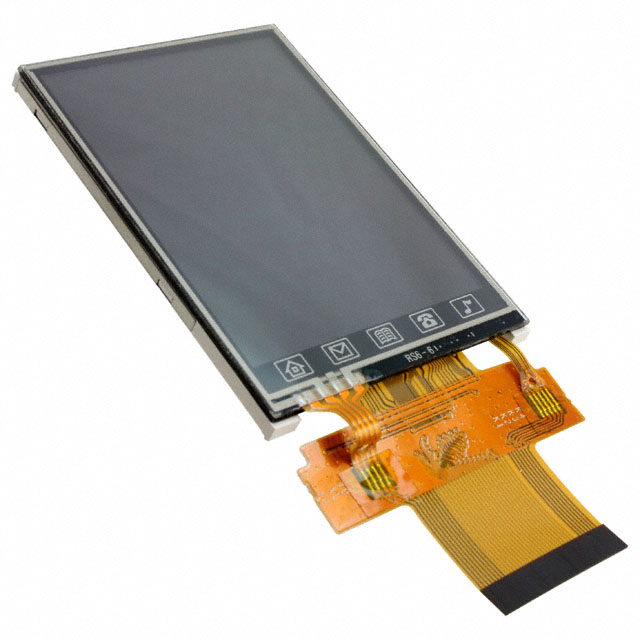

NHD-2.4-240320SF-CTXI#-1
ObsoleteNewhaven Display Intl
LCD DISP TFT 2.4" 240X320 B/L
Deep-Dive with AI
Search across all available documentation for this part.
NHD-2.4-240320SF-CTXI#-1
ObsoleteNewhaven Display Intl
LCD DISP TFT 2.4" 240X320 B/L
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-2.4-240320SF-CTXI#-1 |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size | 60.96 mm |
| Diagonal Screen Size [custom] | 2.4 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 320 |
| Dot Size [x] | 0.15 mm |
| Dot Size [y] | 0.15 mm |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel, 16-Bit (RGB) |
| Viewing Area [x] | 37.72 mm |
| Viewing Area [y] | 49.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHD-2.4-240320SF-CTXI#-1
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 16-Bit (RGB) 2.4" (60.96mm) 240 x 320
Documents
Technical documentation and resources
