PE3CA1044-24
ActivePasternack

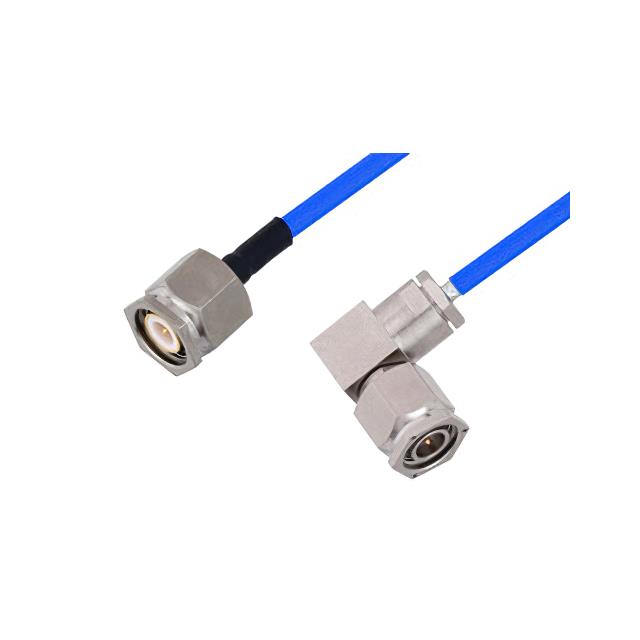

TNC MALE TO TNC MALE RIGHT ANGLE
PE3CA1044-24
ActivePasternack
TNC MALE TO TNC MALE RIGHT ANGLE
Description
General part information
PE3CA1044-24
Cable Assembly Coaxial TNC to TNC 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3CA1044-24 |
|---|---|
| 1st Connector | TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | TNC |
