Description
General part information

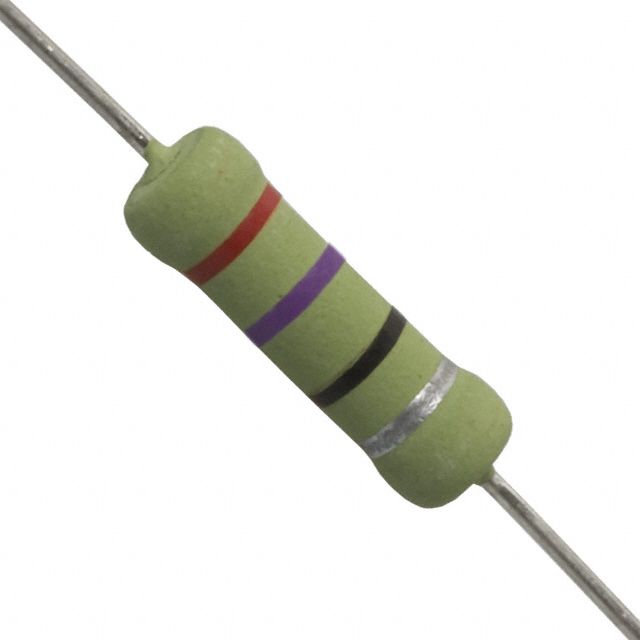

OX270KE
27 Ohms ±10% 1W Through Hole Resistor Axial Moisture Resistant, Pulse Withstanding Ceramic
Technical Specifications
Parameters and characteristics for this part
| Specification | OX270KE |
|---|---|
| Composition | Ceramic |
| Features | Moisture Resistant, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 220 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 27 Ohm |
| Size / Dimension Diameter | 0.217 in |
| Size / Dimension Length | 0.65 in |
| Temperature Coefficient (Highest) | -1000 ppm/°C |
| Temperature Coefficient (Lowest) | -1600 ppm/°C |
| Tolerance | 10 % |
