Description
General part information
RGH1608-2C-P-222-B

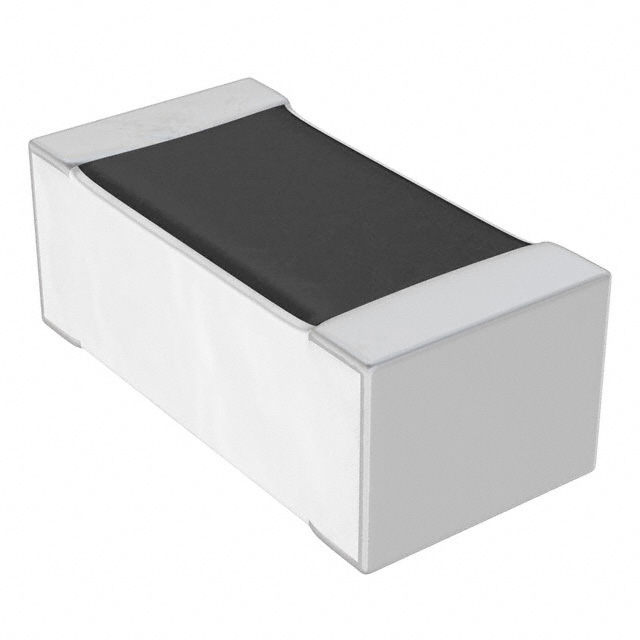

2.2 kOhms ±0.1% 0.167W, 1/6W Chip Resistor 0603 (1608 Metric) Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RGH1608-2C-P-222-B |
|---|---|
| Composition | Thin Film |
| Height - Seated (Max) | 0.02 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Power (Watts) | 0.167 W |
| Power (Watts) Options | 1/6W |
| Resistance | 2.2 kOhm |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
