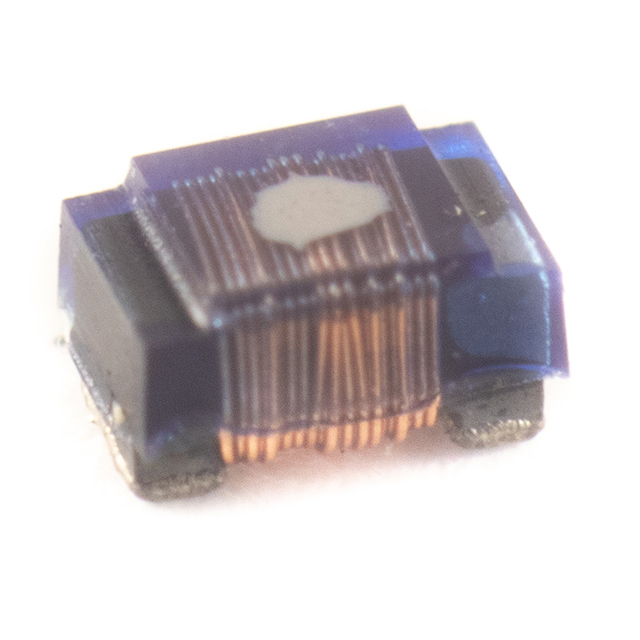

LS03-R47J-RC
ActiveAllied Components International
.47UH +/- 5% SMD INDUCTOR
LS03-R47J-RC
ActiveAllied Components International
.47UH +/- 5% SMD INDUCTOR
Description
General part information
LS03-R47J-RC
470 nH Unshielded Drum Core, Wirewound Inductor 1.05 A 620mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LS03-R47J-RC |
|---|---|
| Current Rating | 1.05 A |
| DC Resistance (DCR) (Max) | 620 mOhm |
| Frequency - Self Resonant | 720 MHz |
| Height - Seated (Max) | 0.04 in |
| Inductance | 470 nH |
| Inductance Frequency - Test | 7.9 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Q | 17 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.071 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
