PE39478-6
ActivePasternack
COAX CBL MMCX TO TNC 6"
PE39478-6
ActivePasternack
COAX CBL MMCX TO TNC 6"
Description
General part information
PE39478-6

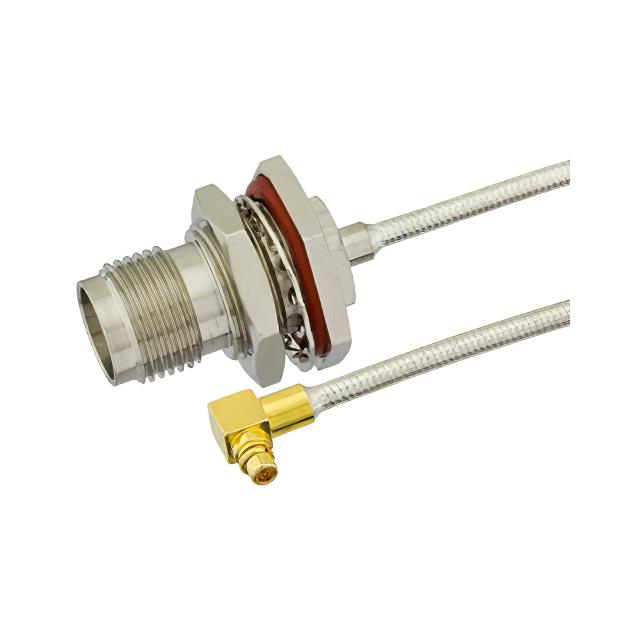

Cable Assembly Coaxial MMCX to TNC 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE39478-6 |
|---|---|
| 1st Connector | MMCX Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 0.5 ft |
| Overall Impedance | 50 Ohms |
| Style | MMCX, TNC |
