PI3VDP12412NEE

Obsolete

Diodes Inc

IC DEMULTIPLEXER 4LANE 48TFBGA

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC DEMULTIPLEXER 4LANE 48TFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	PI3VDP12412NEE

Applications	Video
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Channels	1
On-State Resistance (Max)	10 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

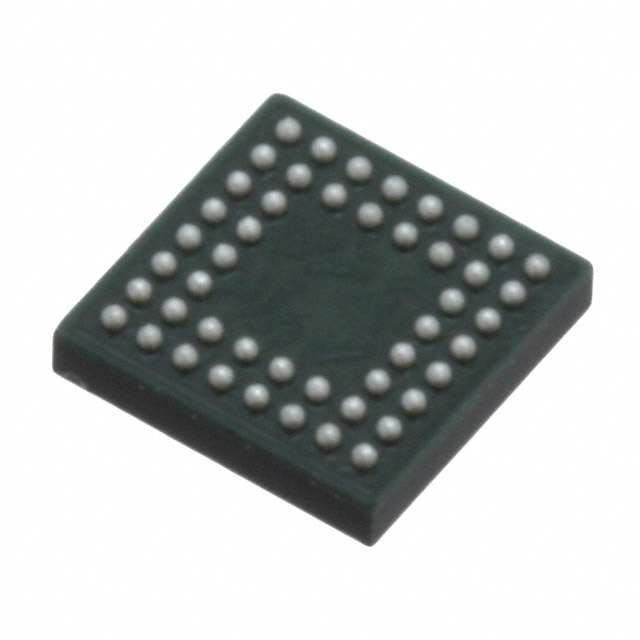

Package / Case	48-TFBGA
Supplier Device Package	48-TFBGA (5x5)
Voltage - Supply, Single (V+)	3.3 V

5.4Gbps 4-Lane DP1.2 Switch

Part	Package / Case	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+)	Multiplexer/Demultiplexer Circuit	On-State Resistance (Max)	Applications	Number of Channels
Diodes Inc PI3VDP12412NEE	48-TFBGA	Surface Mount	48-TFBGA (5x5)	85 °C	-40 °C	3.3 V	2:1	10 Ohm	Video	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5.4Gbps 4-Lane DP1.2 Switch
