TG12-8-01

Active

Marlow Industries, Inc.

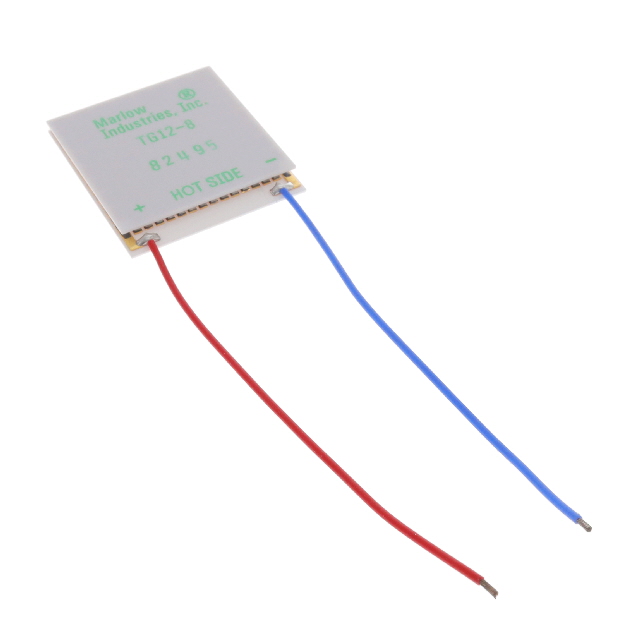

TEG GENERATOR 40.13X40.13X3.53MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEG GENERATOR 40.13X40.13X3.53MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 1.2W @ 50°C 1.5 A 200°C

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TG12-8-01	TG12 Series

Current - Max [Max]	1.5 A	1.1 - 800 mA
Features	Lead Wires	Lapped, Sealed, Lead Wires, Graphite Pads
Height [z]	3.63 mm	3.33 - 4.04 mm
Number of Stages	1	1
Operating Temperature	200 °C	200 °C
Qmax @ Th	1.2 W	0.4 - 1.2 W
Resistance	2.9 Ohms	2.9 - 5.72 Ohms
Size / Dimension	Rectangular	Rectangular
Size / Dimension [x]	44.7 mm	34 - 44.7 mm
Size / Dimension [y]	40.13 mm	30 - 40.13 mm
Voltage - Max [Max]	1.9 V	1.9 V

TEG GENERATOR 30X30X3.33MM

Part	Features	Operating Temperature	Height [z]	Qmax @ Th	Voltage - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Number of Stages	Current - Max [Max]	Size / Dimension
Marlow Industries, Inc. TG12-4-01LS	Lapped, Lead Wires, Sealed	200 °C	3.33 mm	0.6 W	1.9 V	30 mm	34 mm	5.72 Ohms	1	800 mA
Marlow Industries, Inc. TG12-8-01L	Lapped, Lead Wires	200 °C	3.53 mm	1.2 W	1.9 V	40.13 mm	44.7 mm	2.9 Ohms	1	1.5 A	Rectangular
Marlow Industries, Inc. TG12-8-01SG	Graphite Pads, Lead Wires, Sealed	200 °C	3.63 mm	1.2 W	1.9 V	40.13 mm	44.7 mm	2.9 Ohms	1	1.5 A	Rectangular
Marlow Industries, Inc. TG12-2.5-01	Lead Wires	200 °C	4.04 mm	0.4 W	1.9 V	30 mm	34.01 mm		1	500 mA
Marlow Industries, Inc. TG12-8-01S	Lead Wires, Sealed	200 °C	3.63 mm	1.2 W	1.9 V	40.13 mm	44.7 mm	2.9 Ohms	1	1.5 A	Rectangular
Marlow Industries, Inc. TG12-2.5-01LS	Lapped, Lead Wires, Sealed	200 °C	3.94 mm	0.4 W	1.9 V	30 mm	34.01 mm		1	500 mA
Marlow Industries, Inc. TG12-6-01LS	Lapped, Lead Wires, Sealed	200 °C	3.91 mm	0.9 W	1.9 V	40.13 mm	44.7 mm	3.82 Ohms	1	1.1 A	Rectangular
Marlow Industries, Inc. TG12-6-01L	Lapped, Lead Wires	200 °C	3.91 mm	0.9 W	1.9 V	40.13 mm	44.7 mm	3.82 Ohms	1	1.1 A	Rectangular
Marlow Industries, Inc. TG12-2.5-01L	Lapped, Lead Wires	200 °C	3.94 mm	0.4 W	1.9 V	30 mm	34.01 mm		1	500 mA
Marlow Industries, Inc. TG12-8-01LSG	Graphite Pads, Lapped, Lead Wires, Sealed	200 °C	3.53 mm	1.2 W	1.9 V	40.13 mm	44.7 mm	2.9 Ohms	1	1.5 A	Rectangular
