Specification	YR0K505111S000BE

Board Type	Evaluation Platform

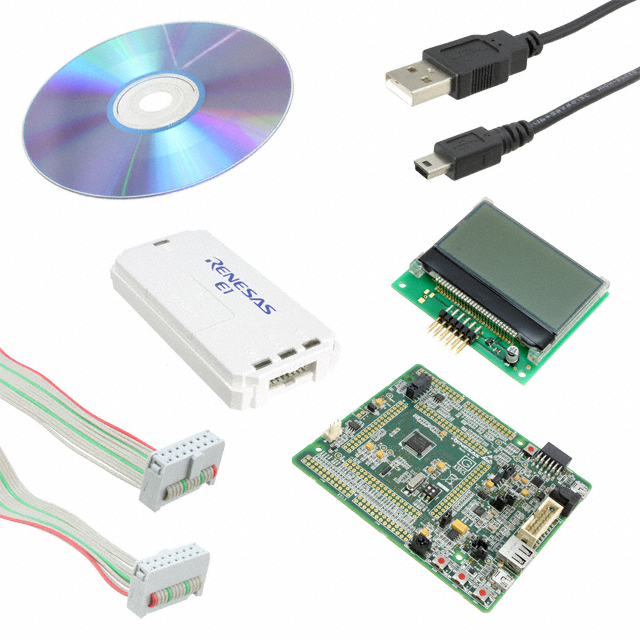

Contents	Board, E1 Programmer, LCD, Cable
Core Processor	RX
Mounting Type	Fixed
Platform	Renesas Starter Kit (RSK) RX111
Suggested Programming Environment	e2 studio
Type	MCU 32-Bit
Utilized IC / Part	RX111, R5F5111

R5F5111 Series

Part	Number of I/O	A/D Resolution (bits)	D/A Channels	A/D Channels	D/A Resolution (bits)	Connectivity	EEPROM Size (Width)	EEPROM Size (Depth)	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Program Memory Width	Program Memory Size	Program Memory Depth	Program Memory Size	Mounting Type	Core Size (Bit Width)	Speed	Package Width	Package Name	Package Length	Peripherals	Oscillator Type	RAM Size Width	RAM Size Depth	Core Processor	Program Memory Type	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Core Configuration
Renesas Electronics Corporation R5F51114ADFK#1A	46	12 bit	2 count	14 count	8 bit	I2C SCI SPI USB OTG	8 bit	8 K	85 °C	-40 °C	64-LQFP	8 bit	96KB	96 K	96 KB	Surface Mount	32 Bit	32 MHz	14 mm	64-LQFP	14 mm	DMA LVD POR PWM WDT	Internal	8 bit	16 K	RX	FLASH	3.6 V	1.8 V	Single-Core
Renesas Electronics Corporation R5F51114ADFM#1A	46	12 bit	2 count	14 count	8 bit	I2C SCI SPI USB OTG	8 bit	8 K	85 °C	-40 °C	64-LQFP	8 bit	96KB	96 K	96 KB	Surface Mount	32 Bit	32 MHz	10 mm	64-LFQFP	10 mm	DMA LVD POR PWM WDT	Internal	8 bit	16 K	RX	FLASH	3.6 V	1.8 V	Single-Core
Renesas Electronics Corporation R5F51114ADFK#5A	46	12 bit	2 count	14 count	8 bit	I2C SCI SPI USB OTG	8 bit	8 K	85 °C	-40 °C	64-LQFP	8 bit	96KB	96 K	96 KB	Surface Mount	32 Bit	32 MHz	14 mm	64-LQFP	14 mm	DMA LVD POR PWM WDT	Internal	8 bit	16 K	RX	FLASH	3.6 V	1.8 V	Single-Core
Renesas Electronics Corporation R5F51114AGFM#5A	46	12 bit	2 count	14 count	8 bit	I2C SCI SPI USB OTG	8 bit	8 K	105 °C	-40 °C	64-LQFP	8 bit	96KB	96 K	96 KB	Surface Mount	32 Bit	32 MHz	10 mm	64-LFQFP	10 mm	DMA LVD POR PWM WDT	Internal	8 bit	16 K	RX	FLASH	3.6 V	1.8 V
Renesas Electronics Corporation R5F51114ADFM#5A	46	12 bit	2 count	14 count	8 bit	I2C SCI SPI USB OTG	8 bit	8 K	85 °C	-40 °C	64-LQFP	8 bit	96KB	96 K	96 KB	Surface Mount	32 Bit	32 MHz	10 mm	64-LFQFP	10 mm	DMA LVD POR PWM WDT	Internal	8 bit	16 K	RX	FLASH	3.6 V	1.8 V	Single-Core
Renesas Electronics Corporation R5F51114AGFM#1A	46	12 bit	2 count	14 count	8 bit	I2C SCI SPI USB OTG	8 bit	8 K	105 °C	-40 °C	64-LQFP	8 bit	96KB	96 K	96 KB	Surface Mount	32 Bit	32 MHz	10 mm	64-LFQFP	10 mm	DMA LVD POR PWM WDT	Internal	8 bit	16 K	RX	FLASH	3.6 V	1.8 V
Renesas Electronics Corporation R5F51114ADFL#1A	30	12 bit		10 count		I2C SCI SPI USB	8 bit	8 K	85 °C	-40 °C	48-LQFP	8 bit	96KB	96 K	96 KB	Surface Mount	32 Bit	32 MHz	7 mm	48-LQFP	7 mm	DMA LVD POR PWM WDT	Internal	8 bit	16 K	RX	FLASH	3.6 V	1.8 V	Single-Core
Renesas Electronics Corporation R5F51114ADLF#GA	46	12 bit	2 count	14 count	8 bit	I2C SCI SPI USB OTG	8 bit	8 K	85 °C	-40 °C	64-WFLGA	8 bit	96KB	96 K	96 KB	Surface Mount	32 Bit	32 MHz	5 mm	64-FLGA	5 mm	DMA LVD POR PWM WDT	Internal	8 bit	16 K	RX	FLASH	3.6 V	1.8 V
Renesas Electronics Corporation R5F51114AGFK#5A	46	12 bit	2 count	14 count	8 bit	I2C SCI SPI USB OTG	8 bit	8 K	105 °C	-40 °C	64-LQFP	8 bit	96KB	96 K	96 KB	Surface Mount	32 Bit	32 MHz	14 mm	64-LQFP	14 mm	DMA LVD POR PWM WDT	Internal	8 bit	16 K	RX	FLASH	3.6 V	1.8 V
Renesas Electronics Corporation R5F51114AGNE#4A	30	12 bit		10 count		I2C SCI SPI USB	8 bit	8 K	105 °C	-40 °C	48-WFQFN Exposed Pad	8 bit	96KB	96 K	96 KB	Surface Mount	32 Bit	32 MHz	7 mm	48-HWQFN	7 mm	DMA LVD POR PWM WDT	Internal	8 bit	16 K	RX	FLASH	3.6 V	1.8 V
