1408341-1

Active

TE Connectivity AMP Connectors

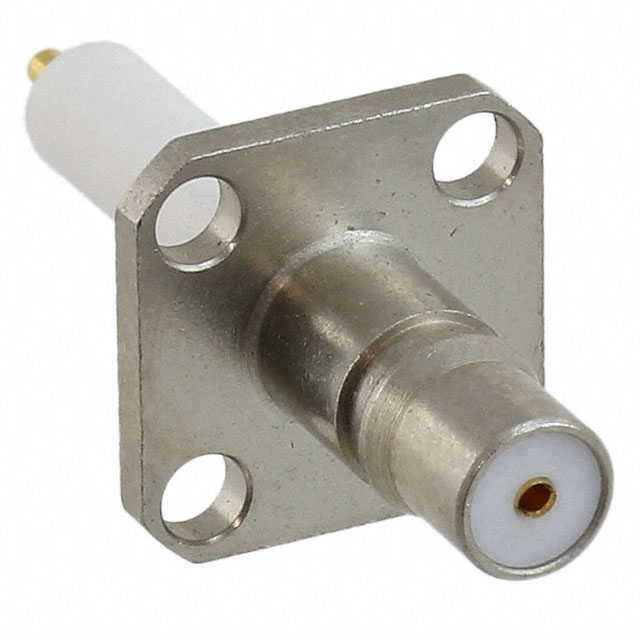

CONN QMA RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QMA RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1408341-1

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

CONN QMA RCPT STR 50 OHM SOLDER

Part	Voltage Rating	Body Material	Body Finish	Features	Frequency - Max [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Number of Ports	Center Contact Material	Housing Color	Insertion Loss	Contact Termination	Fastening Type	Impedance	Center Contact Plating	Mounting Feature	Dielectric Material
TE Connectivity AMP Connectors 1408341-1	335 V	Brass	Nickel	Extended Insulation	6000 MHz	Female Socket, Receptacle	-40 °C	80 C	Solder	1	Beryllium Copper	Silver	0.25 dB	Solder	Snap-On	50 Ohms	Gold	Flange	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

QMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
