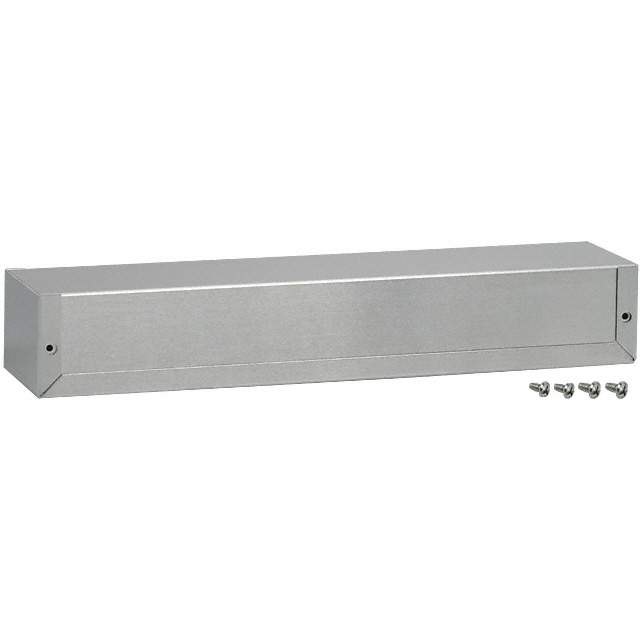

1411TU

Active

Hammond Manufacturing

BOX ALUM 9.99"L X 2.25"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1411, 1412 Series Datasheet

1411TU

Active

Hammond Manufacturing

BOX ALUM 9.99"L X 2.25"W

Deep-Dive with AI

Documents1411, 1412 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411TU	1411 Series

Area (L x W)	22.4 in˛	6.23 - 85.1 in˛
Area (L x W)	145 cm˛	40.2 - 549 cm˛
Area (L x W)	-	15 in²
Color	Unpainted	Gray, Unpainted, Black
Container Type	Box	Box
Design	U Shaped Pieces	U Shaped Pieces
Height [z]	41.66 mm	41.66 - 101.85 mm
Height [z]	1.64 in	1.64 - 101.6 in
Material	Metal, Aluminum	Metal, Aluminum
Size / Dimension	-	57.15 - 126.75 mm
Size / Dimension	-	177.55 mm
Size / Dimension [x]	9.99 in	2.77 - 16.98 in
Size / Dimension [x]	253.75 mm	6.99 - 431.29 mm
Size / Dimension [y]	57.15 mm	4.99 - 177.55 mm
Size / Dimension [y]	2.25 in	2.25 - 6.99 "
Thickness	0.04 in	0.04 in
Thickness	1.02 mm	1.02 mm
Weight	136.08 g	63.5 - 635 g
Weight	0.3 lb	0.14 - 1.4 lb

1411 Series

BOX ALUM GRAY 4"L X 2.3"W

Part	Color	Weight	Weight	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Design	Thickness	Thickness	Material	Size / Dimension [y]	Area (L x W)	Size / Dimension [x]
Hammond Manufacturing 1411F	Gray	0.24 lb	108.86 g	9.2 in˛	59.4 cm˛	3.02 in	76.71 mm	Box	4 in	101.6 mm	2.3 "	58.42 mm	U Shaped Pieces	0.04 in	1.02 mm	Aluminum, Metal
Hammond Manufacturing 1411N	Gray	0.28 lb	127.01 g		97 cm²	2.26 in	57.4 mm	Box	5 in	127 mm	3.01 in		U Shaped Pieces	0.04 in	1.02 mm	Aluminum, Metal	76.45 mm	15 in²
Hammond Manufacturing 1411M	Gray	0.36 lb	163.29 g	17.8 in²	115 cm˛	3.01 "	76.45 mm	Box	6 in	152.4 mm	2.99 in		U Shaped Pieces	0.04 in	1.02 mm	Aluminum, Metal	75.95 mm
Hammond Manufacturing 1411TU	Unpainted	0.3 lb	136.08 g	22.4 in˛	145 cm˛	1.64 in	41.66 mm	Box	9.99 in	253.75 mm	2.25 in		U Shaped Pieces	0.04 in	1.02 mm	Aluminum, Metal	57.15 mm
Hammond Manufacturing 1411FBNBK	Black	0.28 lb	127.01 g		97 cm²	2.26 in	57.4 mm	Box	5 in	127 mm	3.01 in		U Shaped Pieces	0.04 in	1.02 mm	Aluminum, Metal	76.45 mm	15 in²
Hammond Manufacturing 1411QU	Unpainted	0.6 lb	272.16 g	34.8 in˛	225 cm²	3.01 "	76.45 mm	Box		6.99 "		126.75 mm	U Shaped Pieces	0.04 in	1.02 mm	Aluminum, Metal	4.99 "		177.55 mm
Hammond Manufacturing 1411FBPBK	Black	0.62 lb	281.23 g	29.9 in²	193 cm²	4.01 in	101.85 mm	Box	5.99 in	152.15 mm	4.99 in		U Shaped Pieces	0.04 in	1.02 mm	Aluminum, Metal	126.75 mm
Hammond Manufacturing 1411K	Gray	0.24 lb	108.86 g	11.3 in²	73 cm²	2.26 in	57.4 mm	Box	5 in	127 mm	2.25 in		U Shaped Pieces	0.04 in	1.02 mm	Aluminum, Metal	57.15 mm
Hammond Manufacturing 1411P	Gray	0.62 lb	281.23 g	29.9 in²	193 cm²	4.01 in	101.85 mm	Box	5.99 in	152.15 mm	4.99 in		U Shaped Pieces	0.04 in	1.02 mm	Aluminum, Metal	126.75 mm
Hammond Manufacturing 1411Z	Gray	1.4 lbs	635 g	85.1 in²	549 cm²	101.6 mm	101.6 mm	Box	16.98 in	431.29 mm	5.01 in		U Shaped Pieces	0.04 in	1.02 mm	Aluminum, Metal	127.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.05
		5	$ 20.56
		10	$ 19.22
		25	$ 17.58
		50	$ 16.43
		100	$ 15.90

Description

General part information

1411 Series

Box Metal, Aluminum Unpainted U Shaped Pieces 9.990" L x 2.250" W (253.75mm x 57.15mm) X 1.640" (41.66mm)

Documents

Technical documentation and resources

1411, 1412 Series

Datasheet
