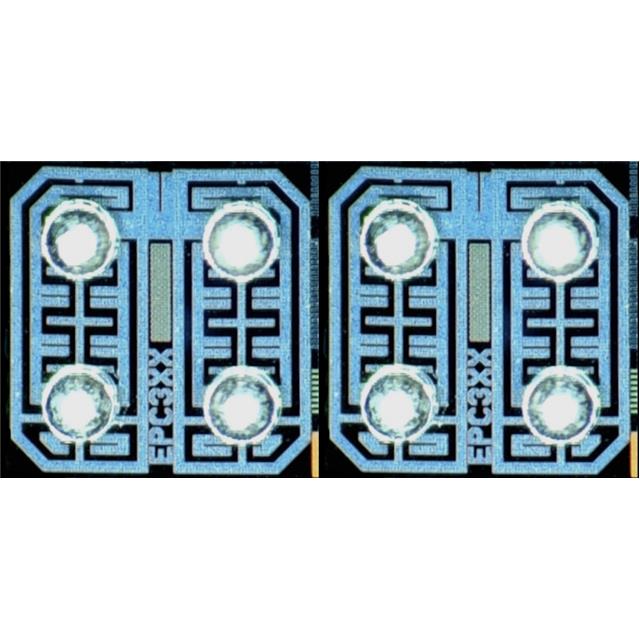

EPC310-CSP8-001
ObsoleteESPROS Photonics AG
SENSOR PHOTODIODE 850NM 8XFBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPC310-CSP8-001
ObsoleteESPROS Photonics AG
SENSOR PHOTODIODE 850NM 8XFBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC310-CSP8-001 |
|---|---|
| Active Area | 1.71 mm² |
| Color - Enhanced | Red, Infrared (NIR) |
| Current - Dark (Typ) | 160 pA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-XFBGA, CSPBGA |
| Response Time | 300 ns |
| Responsivity @ nm | 0.6 A/W |
| Spectral Range [Max] | 1030 nm |
| Spectral Range [Min] | 400 nm |
| Viewing Angle | 150 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EPC310 Series
Photodiode 850nm 300ns 150° 8-XFBGA, CSPBGA
Documents
Technical documentation and resources
