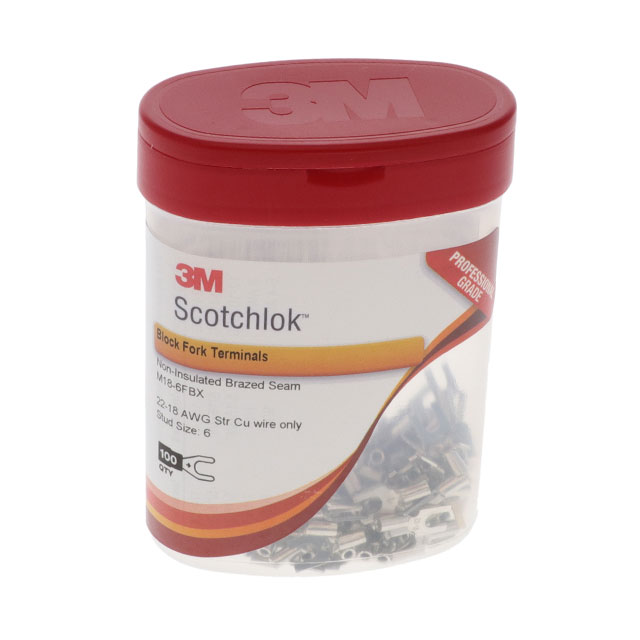

M18-6FBX

Active

CONNSPADETERM18-22AWG 1=1BOTTLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M18-6FBX

Active

CONNSPADETERM18-22AWG 1=1BOTTLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.31
		10	$ 49.84
		25	$ 47.92
		50	$ 46.32
		100	$ 43.77

Description

General part information

M18 Series

6 Stud Spade Terminal Connector Crimp 18-22 AWG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M18-6FBX	M18 Series

Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Non-Insulated	Non-Insulated
Length - Overall	-	23.62 mm
Length - Overall [x]	0.65 "	0.6 - 0.93 "
Length - Overall [x]	16.5 mm	15.24 - 18.8 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Ring Center to Termination [x]	0.25 in	0.25 in
Length - Ring Center to Termination [x]	6.35 mm	6.35 mm
Length - Termination	-	6.35 mm
Length - Termination	-	0.25 "
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	6 Stud	6 - 10 Stud
Stud/Tab Size	-	8 Stud, 3/8 Stud
Terminal Type	Standard	Standard, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	7.87 - 8.64 mm
Width - Outer Edges	-	0.34 in
Width - Outer Edges	-	0.25 - 0.56 in
Width - Outer Edges	-	6.35 - 14.22 mm
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

M18 Series

CONNSPADETERM18-22AWG 1=1BOTTLE

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Features	Terminal Type	Length - Overall [x]	Length - Overall [x]	Insulation	Stud/Tab Size	Contact Finish	Termination	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Length - Ring Center to Termination	Length - Ring Center to Termination	Length - Termination	Length - Termination [x]	Width - Outer Edges	Width - Outer Edges	Stud/Tab Size	Width - Outer Edges [y]	Thickness	Thickness	Width - Outer Edges [y]	Length - Overall	Number of Wire Entries
3M M18-6FBX	0.25 in	6.35 mm	Brazed Seam	Standard	0.65 "	16.5 mm	Non-Insulated	6 Stud	Tin	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Copper, ETP
3M M18-8FX-BOTTLE			Brazed Seam	Standard	0.7 in	17.78 mm	Non-Insulated		Tin	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Copper, ETP	0.29 in	7.37 mm	6.35 mm	0.25 "	8.64 mm	0.34 in	8 Stud
3M M18-8R/LK			Brazed Seam	Circular	0.74 in	18.8 mm	Non-Insulated			Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG						7.87 mm		8 Stud	0.31 in	0.03 in	0.76 mm
3M M18-8R/LX-BOTTLE			Brazed Seam	Circular	0.74 in	18.8 mm	Non-Insulated		Tin	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Copper, ETP					7.87 mm		8 Stud	0.31 in	0.03 in	0.76 mm
3M M18-38RX-BOTTLE			Brazed Seam	Circular	0.93 in		Non-Insulated		Tin	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Copper, ETP							3/8 Stud	0.56 in	0.03 in	0.76 mm	14.22 mm	23.62 mm
3M M18BCX-BOTTLE				Butt Splice, Individual Openings, Inline			Non-Insulated			Crimp		22 AWG	17.5 AWG														2
3M M18-10FBX-BOTTLE	0.25 in	6.35 mm	Brazed Seam	Standard	0.65 "	16.5 mm	Non-Insulated	10 Stud	Tin	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Copper, ETP
3M M18-6R/SK			Brazed Seam	Circular	0.6 in	15.24 mm	Non-Insulated	6 Stud		Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG									0.25 "	0.03 in	0.76 mm	6.35 mm
3M M18BCK				Butt Splice, Individual Openings, Inline			Non-Insulated			Crimp		22 AWG	17.5 AWG														2
