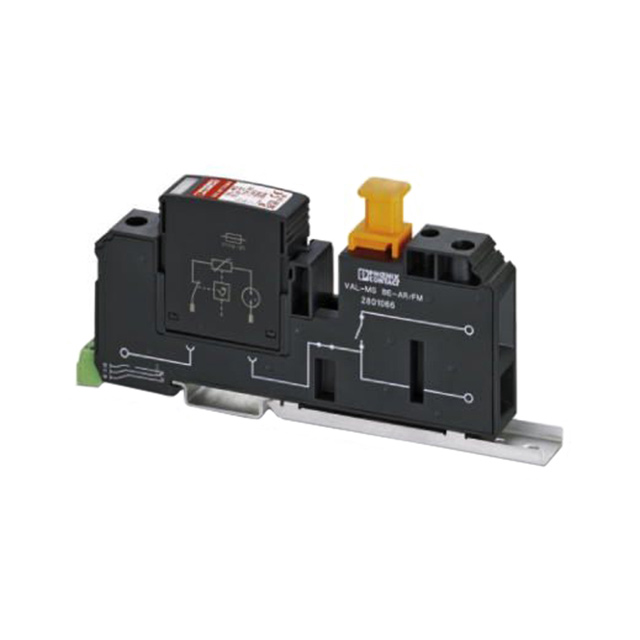

2801488
ActivePhoenix Contact
SPD TYPE 2 75VAC/100VDC MCOV
2801488
ActivePhoenix Contact
SPD TYPE 2 75VAC/100VDC MCOV
Description
General part information
2801488
SPD TYPE 2 75VAC/100VDC MCOV
Technical Specifications
Parameters and characteristics for this part
| Specification | 2801488 |
|---|---|
| Current - Discharge (Max) | 20 kA |
| Current - Discharge (Nom) | 10 kA |
| Form | Module, Base |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Type 2 |
| Voltage - Continuous Operating (Max) (MCOV) AC | 75 VAC |
| Voltage - Continuous Operating (Max) (MCOV) DC | 100 VDC |
| Voltage - Protection Level (VP) (2416) | 1.4 kV |
