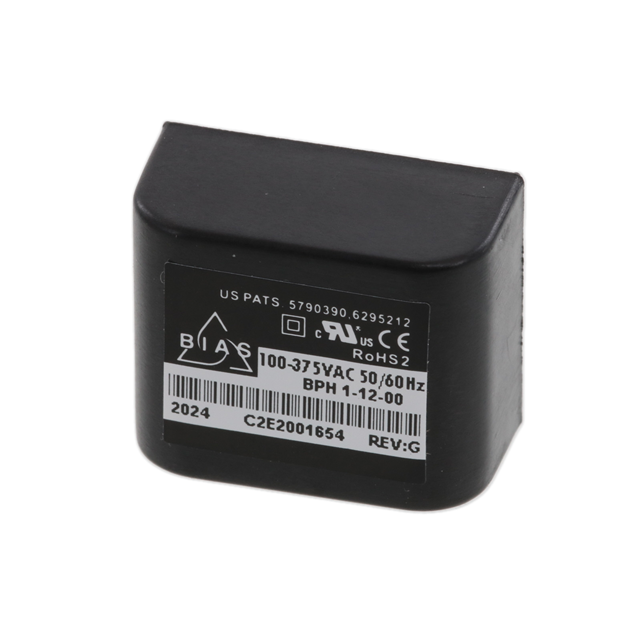

BPH1-12-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 12V 1W

Search across all available documentation for this part.

Active

Cita Technologies, LLC.

AC/DC CONVERTER 12V 1W

Technical Specifications

Parameters and characteristics for this part

AC/DC CONVERTER 12V 1W

Part	Mounting Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Type	Package / Case	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications
Cita Technologies, LLC. BPH1-12-00	Through Hole	1	70 °C	-30 ░C	12 V	CB, cURus	100 VAC	375 VAC	Enclosed	7-DIP Module	70 %	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.58

General part information

Enclosed AC DC Converters 1 Output 12V 100 ~ 375 VAC Input

Technical documentation and resources
