Description
General part information

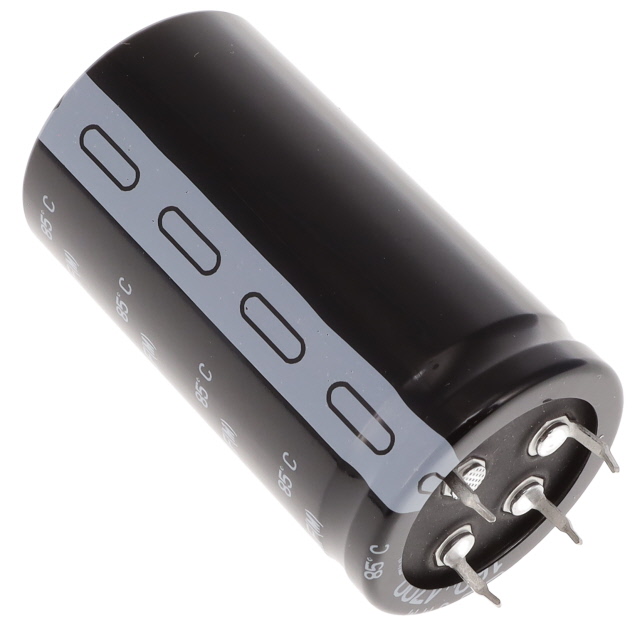

ESMM161VND472MA63U
4700 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 3000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | ESMM161VND472MA63U |
|---|---|
| Capacitance | 4700 µF |
| Height - Seated (Max) | 2.559 in |
| Lead Spacing | 0.886 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Can - Snap-In |
| Polarization | Polar |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 160 V |
