82778 8771000

Active

Belden Inc.

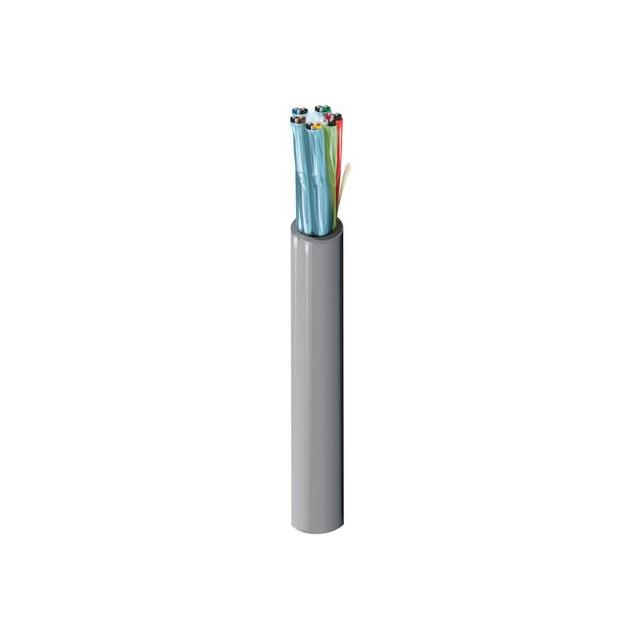

MULTI-PAIR 12COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	82778 8771000

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.314 in
Jacket (Insulation) Diameter [diameter]	7.98 mm
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket Color	Jacket (Insulation) Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Voltage	Length	Length	Shield Type	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Shield Coverage	Number of Conductors	Conductor Insulation	Conductor Material
Belden Inc. 82778 8771000	Natural	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	22 AWG	7	30 AWG	Aluminum	60 °C	0 °C	Multi-Pair	0.314 in	7.98 mm	Audio Control Instrumentation	300 V	1000 ft	304.8 m	Foil	Drain Wire	0.432 mm	0.017 in	UL Style CMP	100 %	12	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 10.13

General part information

12 (6 Pair Twisted) Conductor Multi-Pair Cable Natural 22 AWG Foil 1000.0' (304.8m)
