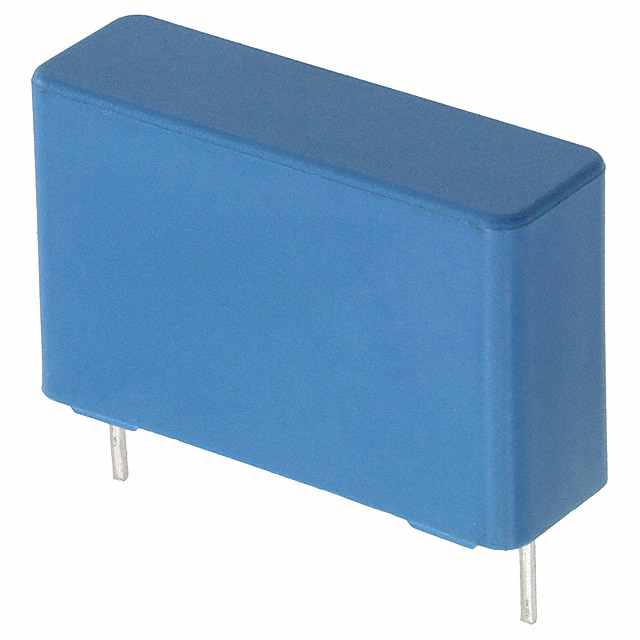

Specification	B32673P6225K000

Applications	Power Factor Correction (PFC)
Capacitance	2.2 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	0.866 in
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	1.043 in
Size / Dimension Width	0.472 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	200 Vpk
Voltage Rating - DC	630 V
