Description

General part information

MCP112 Series

The MCP111/112 Series are CMOS voltage detectors are well suited for portable, consumer electrics applications due to the extremely low 1uA operating current and small surface-mount packaging. These devices are designed to hold the microcontroller in reset until the supply voltage reaches a predetermined operating level. These devices also protect against brownout conditions that occur as a result of the supply voltage dropping below a tolerable level.

Technical Specifications

Parameters and characteristics for this part

Specification	MCP112-240E/TO

Mounting Type	Through Hole
Number of Voltages Monitored	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output	Push-Pull, Totem Pole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Package Name	TO-92-3
Reset	Active Low
Type	Simple Reset/Power-On Reset
Voltage - Threshold	2.32 V

MCP112 Series

Micropower Voltage Detector, Active Low, Push Pull

Part	Type	Number of Voltages Monitored	Mounting Type	Voltage - Threshold	Reset	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Output	Package Name
Microchip Technology MCP112T-300E/LB	Simple Reset/Power-On Reset	1	Surface Mount	2.93 V	Active Low	125 °C	-40 °C	SC-70 SOT-323	Push-Pull Totem Pole	SC-70-3
Microchip Technology MCP112T-240E/MB	Simple Reset/Power-On Reset	1	Surface Mount	2.32 V	Active Low	125 °C	-40 °C	TO-243AA	Push-Pull Totem Pole	SOT-89-3
Microchip Technology MCP112-300E/TO	Simple Reset/Power-On Reset	1	Through Hole	2.93 V	Active Low	125 °C	-40 °C	TO-226-3 TO-92-3 (TO-226AA)	Push-Pull Totem Pole	TO-92-3
Microchip Technology MCP112T-290E/LB	Simple Reset/Power-On Reset	1	Surface Mount	2.9 V	Active Low	125 °C	-40 °C	SC-70 SOT-323	Push-Pull Totem Pole	SC-70-3
Microchip Technology MCP112T-195I/TTG	Simple Reset/Power-On Reset	1	Surface Mount	1.9 V	Active Low	85 °C	-40 °C	SC-59 SOT-23-3 TO-236-3	Push-Pull Totem Pole	SOT-23-3
Microchip Technology MCP112T-315E/LB	Simple Reset/Power-On Reset	1	Surface Mount	3.08 V	Active Low	125 °C	-40 °C	SC-70 SOT-323	Push-Pull Totem Pole	SC-70-3

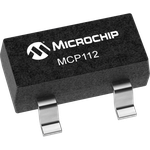

Microchip Technology MCP112T-240E/TT	Simple Reset/Power-On Reset	1	Surface Mount	2.32 V	Active Low	125 °C	-40 °C	SC-59 SOT-23-3 TO-236-3	Push-Pull Totem Pole	SOT-23-3
Microchip Technology MCP112T-450E/TT	Simple Reset/Power-On Reset	1	Surface Mount	4.38 V	Active Low	125 °C	-40 °C	SC-59 SOT-23-3 TO-236-3	Push-Pull Totem Pole	SOT-23-3
Microchip Technology MCP112T-195I/LB	Simple Reset/Power-On Reset	1	Surface Mount	1.9 V	Active Low	85 °C	-40 °C	SC-70 SOT-323	Push-Pull Totem Pole	SC-70-3
Microchip Technology MCP112-290E/TO	Simple Reset/Power-On Reset	1	Through Hole	2.9 V	Active Low	125 °C	-40 °C	TO-226-3 TO-92-3 (TO-226AA)	Push-Pull Totem Pole	TO-92-3
