MC68360RC33L
ObsoleteNXP USA Inc.

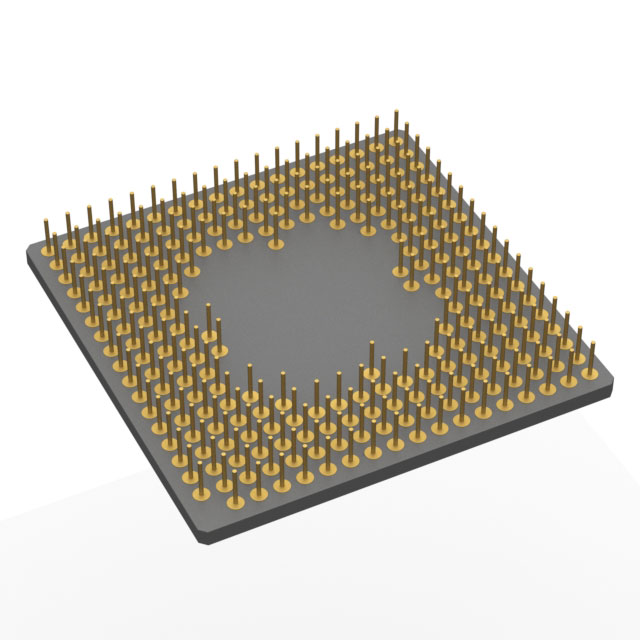

IC MPU M683XX 33MHZ 241PGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC68360RC33L
ObsoleteNXP USA Inc.
IC MPU M683XX 33MHZ 241PGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MC68360RC33L | MC683 Series |
|---|---|---|
| Additional Interfaces | SMC, SCC, SPI | DUART, SMC, SCC, SPI, USART, GCI, ISDN, NMSI, SCPI, IDL, PCM |
| Co-Processors/DSP | CPM, Communications | CPM, Communications, RISC CPM |
| Core Processor | CPU32+ | EC000, CPU32+, CPU32, M68000 |
| Ethernet | 10 Mbps | 10 Mbps |
| Graphics Acceleration | False | False |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of Cores/Bus Width | 32 Bit, 1 Core | 1 - 32 Bit |
| Number of Cores/Bus Width | - | 8 Bit |
| Number of Cores/Bus Width | - | 1 |
| Number of Cores/Bus Width | - | 16 Bit |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Package / Case | 241-BEPGA | 132-BQFP Bumpered, 357-BBGA, 144-BQFP, 144-LQFP, 357-BGA, 240-BFQFP, 132-BPGA Exposed Pad, 241-BEPGA |
| RAM Controllers | DRAM | DRAM |
| Speed | 33 MHz | 16 - 33 MHz |
| Supplier Device Package | 241-PGA | 132-PQFP, 357-PBGA (25x25), 144-QFP (28x28), 144-LQFP (20x20), 132-PQFP (46x46), 240-FQFP (32x32), 132-PGA, 241-PGA |
| Supplier Device Package [x] | 47.24 | 24.13 - 47.24 |
| Supplier Device Package [y] | 47.24 | 24.13 - 47.24 |
| Voltage - I/O | 5 V | 3.3 - 5 V |
MC683 Series
IC MPU M683XX 16MHZ 132PQFP
| Part | Core Processor | Graphics Acceleration | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Additional Interfaces | Operating Temperature [Max] | Operating Temperature [Min] | Number of Cores/Bus Width | Voltage - I/O | RAM Controllers | Mounting Type | Package / Case | Speed | Co-Processors/DSP | Ethernet | Number of Cores/Bus Width [Min] [custom] | Number of Cores/Bus Width [custom] | Number of Cores/Bus Width [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NXP USA Inc. MC68306EH16BR2 | EC000 | 24.13 | 24.13 | 132-PQFP | DUART | 70 °C | 0 °C | 1 Core, 32 Bit | 5 V | DRAM | Surface Mount | 132-BQFP Bumpered | 16 MHz | ||||||
NXP USA Inc. MC68360VR25VL | CPU32+ | 357-PBGA (25x25) | SCC, SMC, SPI | 70 °C | 0 °C | 1 Core, 32 Bit | 3.3 V | DRAM | Surface Mount | 357-BBGA | 25 MHz | Communications, CPM | 10 Mbps | ||||||
NXP USA Inc. MC68340CAB16E | CPU32 | 144-QFP (28x28) | USART | 85 °C | -40 °C | 1 Core, 32 Bit | 5 V | DRAM | Surface Mount | 144-BQFP | 16 MHz | ||||||||
NXP USA Inc. MC68302PV33C | M68000 | 144-LQFP (20x20) | GCI, IDL, ISDN, NMSI, PCM, SCPI | 70 °C | 0 °C | 5 V | DRAM | Surface Mount | 144-LQFP | 33 MHz | Communications, RISC CPM | 8 Bit | 1 | 16 Bit | |||||
NXP USA Inc. MC68302PV20C | M68000 | 144-LQFP (20x20) | GCI, IDL, ISDN, NMSI, PCM, SCPI | 70 °C | 0 °C | 5 V | DRAM | Surface Mount | 144-LQFP | 20 MHz | Communications, RISC CPM | 8 Bit | 1 | 16 Bit | |||||
NXP USA Inc. MC68340FT25E | CPU32 | 144-QFP (28x28) | USART | 70 °C | 0 °C | 1 Core, 32 Bit | 5 V | DRAM | Surface Mount | 144-BQFP | 25 MHz | ||||||||
NXP USA Inc. MC68340AB16E | CPU32 | 144-QFP (28x28) | USART | 70 °C | 0 °C | 1 Core, 32 Bit | 5 V | DRAM | Surface Mount | 144-BQFP | 16 MHz | ||||||||
NXP USA Inc. MC68302AG16C | M68000 | 144-LQFP (20x20) | GCI, IDL, ISDN, NMSI, PCM, SCPI | 70 °C | 0 °C | 5 V | DRAM | Surface Mount | 144-LQFP | 16 MHz | Communications, RISC CPM | 8 Bit | 1 | 16 Bit | |||||
NXP USA Inc. MC68340CAB25E | CPU32 | 144-QFP (28x28) | USART | 85 °C | -40 °C | 1 Core, 32 Bit | 5 V | DRAM | Surface Mount | 144-BQFP | 25 MHz | ||||||||
NXP USA Inc. MC68360ZP25VL | CPU32+ | 357-PBGA (25x25) | SCC, SMC, SPI | 70 °C | 0 °C | 1 Core, 32 Bit | 3.3 V | DRAM | Surface Mount | 357-BGA | 25 MHz | Communications, CPM | 10 Mbps |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MC683 Series
CPU32+ Microprocessor IC M683xx 1 Core, 32-Bit 33MHz 241-PGA (47.24x47.24)
