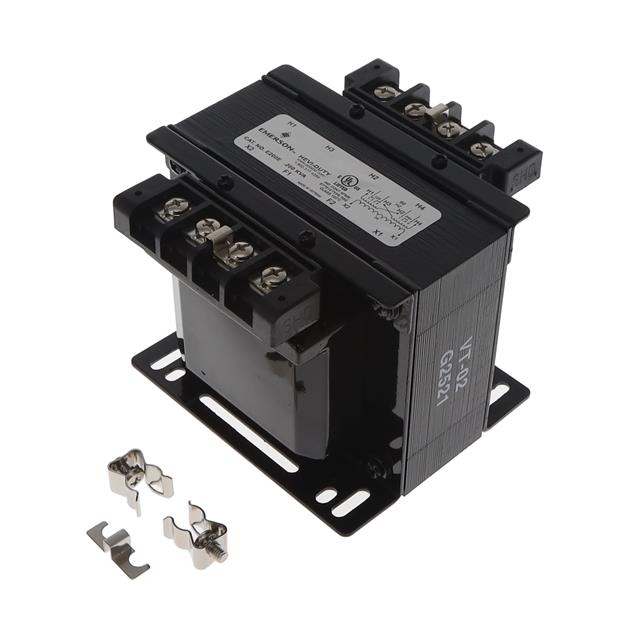

E200E

Active

SolaHD

PCB TRANSFORMER, INDUSTRIAL, ENCAPSULATED, 2 X 120V, 24V, 200 VA, 60HZ

Search across all available documentation for this part.

Active

SolaHD

PCB TRANSFORMER, INDUSTRIAL, ENCAPSULATED, 2 X 120V, 24V, 200 VA, 60HZ

Technical Specifications

Parameters and characteristics commom to parts in this series

PWR XFMR LAMINATED CHAS MT

Part	Size / Dimension [x]	Size / Dimension [y]	Termination Style	Mounting Type	Type	Secondary Winding(s)	Voltage - Secondary (Full Load)	Primary Winding(s)	Power - Max [Max]	Voltage - Primary
SolaHD E200EW	121.7 mm	4.5 in	Quick Connect, Solder	Chassis Mount	Laminated Core
SolaHD E200E			Quick Connect, Solder	Chassis Mount	Laminated Core	Single	24 V	Dual, Multiple Taps	200 VA	120 V, 240 V
SolaHD E200EWB	121.7 mm	4.5 in	Quick Connect, Solder	Chassis Mount	Laminated Core
SolaHD E200W	121.7 mm	4.5 in	Quick Connect, Solder	Chassis Mount	Laminated Core
SolaHD E200WB	121.7 mm	4.5 in	Quick Connect, Solder	Chassis Mount	Laminated Core
SolaHD E200WA	121.7 mm	4.5 in	Quick Connect, Solder	Chassis Mount	Laminated Core
SolaHD E200EWA	121.7 mm	4.5 in	Quick Connect, Solder	Chassis Mount	Laminated Core

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PCB TRANSFORMER, INDUSTRIAL, ENCAPSULATED, 2 X 120V, 24V, 200 VA, 60HZ

Technical documentation and resources
