Description
General part information

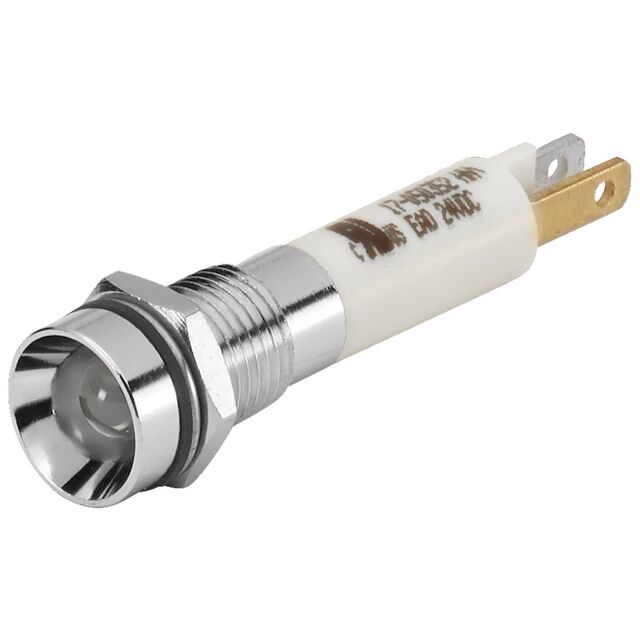

17-130354
LED Panel Indicator Green, Red Diffused 24V Green, 24V Red 22mA Green, 22mA Red Quick Connect - 0.110" (2.8mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 17-130354 |
|---|---|
| Current (Green) | 22 mA |
| Current (Red) | 22 mA |
| Current Colors | Green, Red |
| Ingress Protection | IP67 |
| Lamp Color | Red, Green |
| Lens Color | Yellow |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating (Green) | 30 mcd |
| Millicandela Rating (Red) | 30 mcd |
| Millicandela Rating Colors | Green, Red |
| Panel Cutout Dimension | 0.32 " |
| Panel Cutout Shape | Round |
| Quick Connect Size (0.110") | 0.11 in |
| Ratings | DC |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage (Green) | 24 V |
| Voltage (Red) | 24 V |
| Voltage Color | Red, Green |
