SMS-R008-1.0
ActiveIsabellenhuette USA

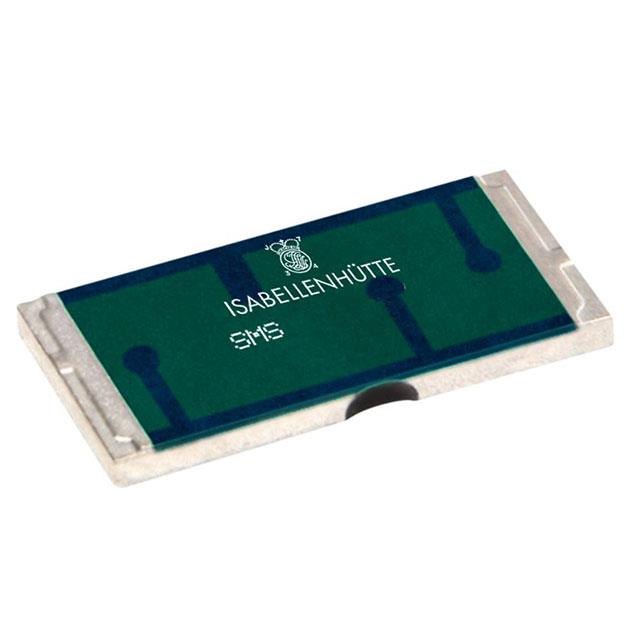

RESISTOR - ISA-PLAN SHUNT, 0.008
SMS-R008-1.0
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.008
Description
General part information
SMS-R008-1.0
8 mOhms ±1% 5W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS-R008-1.0 |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 0.039 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 2512 (6432 Metric) |
| Package Name | 2512 |
| Power (Watts) | 5 W |
| Resistance | 8 mOhms |
| Size / Dimension Length | 0.25 in |
| Size / Dimension Width | 0.12 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
