PE91267
ActivePasternack

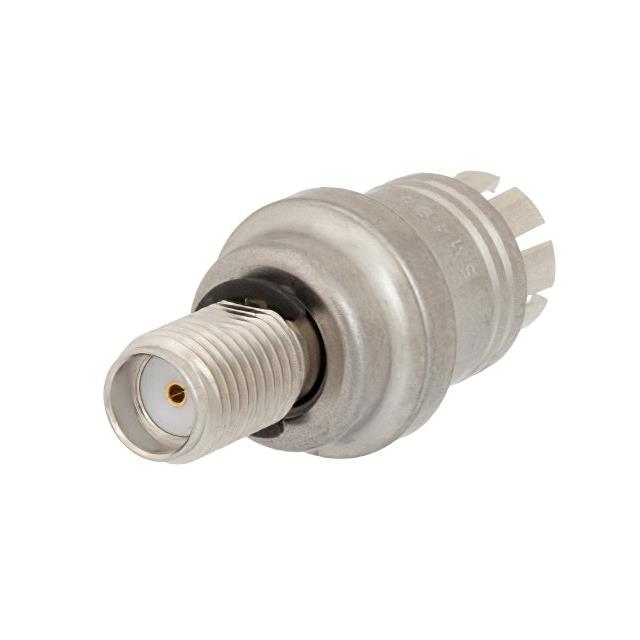

QD RP-SMA MALE TO SMA FEMALE ADA
PE91267
ActivePasternack
QD RP-SMA MALE TO SMA FEMALE ADA
Description
General part information
PE91267
Adapter Coaxial Connector SMA Jack, Female Socket To RP-SMA Plug, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE91267 |
|---|---|
| Adapter Series | SMA to RP-SMA |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, RP-SMA Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
