CRCW1206100RDHEAP

Active

Vishay Dale

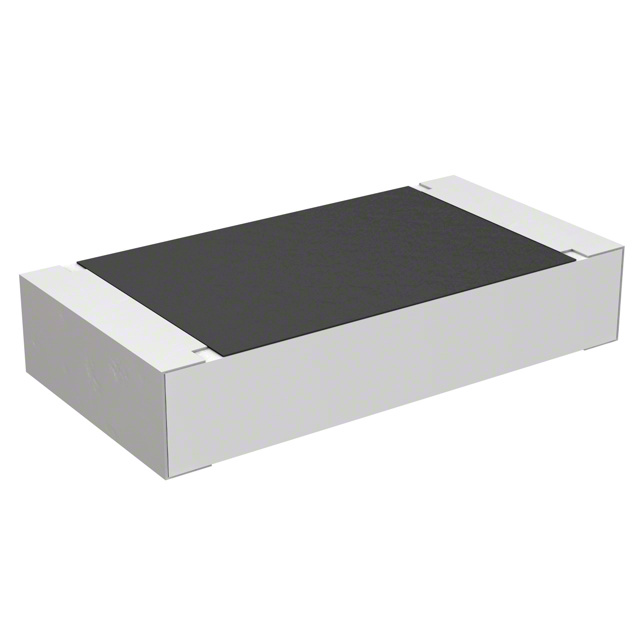

RES SMD 100 OHM 0.5% 1/4W 1206

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CRCW1206100RDHEAP

Active

Vishay Dale

RES SMD 100 OHM 0.5% 1/4W 1206

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRCW1206100RDHEAP	CRCW1206 Series

Composition	Thick Film	Thick Film
Features	Automotive AEC-Q200	Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max)	-	0.026 in
Height - Seated (Max)	-	0.65 mm
Height - Seated (Max) [Max] [z]	0.6 mm	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in	0.024 in
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Power (Watts)	0.25 W	0.25 - 0.75 W
Power (Watts)	250 mW	0.75 - 250 mW
Ratings	AEC-Q200	AEC-Q200
Resistance	100 Ohms	0 - 750000 MOhms
Size / Dimension	-	0.063 in
Size / Dimension	-	0.122 "
Size / Dimension [x]	0.126 "	0.126 "
Size / Dimension [x]	3.2 mm	3.1 - 3.2 mm
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	1206	1206
Temperature Coefficient	50 ppm/°C	50 - 500 ppm/°C
Tolerance	-	1 - 10 %
Tolerance	-	Jumper

CRCW1206 Series

RES SMD 3.92M OHM 1% 1/4W 1206

...

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance	Ratings	Power (Watts)	Power (Watts)	Package / Case	Features	Temperature Coefficient	Tolerance	Number of Terminations	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Vishay Dale CRCW12063M92FKEB	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	Thick Film	0.6 mm	0.024 in	3.92 MOhms	AEC-Q200	0.25 W	250 mW	1206 (3216 Metric)	Automotive AEC-Q200	100 ppm/°C	1 %	2
Vishay Dale CRCW1206750RFKEB	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	Thick Film	0.6 mm	0.024 in	750 Ohms	AEC-Q200	0.25 W	250 mW	1206 (3216 Metric)	Automotive AEC-Q200	100 ppm/°C	1 %	2
Vishay Dale CRCW12061K27FKTA	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	Thick Film	0.6 mm	0.024 in	1.27 kOhms	AEC-Q200	0.25 W	250 mW	1206 (3216 Metric)	Automotive AEC-Q200	100 ppm/°C	1 %	2
Vishay Dale CRCW1206604KFKEB	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	Thick Film	0.6 mm	0.024 in	604 kOhms	AEC-Q200	0.25 W	250 mW	1206 (3216 Metric)	Automotive AEC-Q200	100 ppm/°C	1 %	2
Vishay Dale CRCW1206301RFKTC	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	Thick Film	0.6 mm	0.024 in	301 Ohms	AEC-Q200	0.25 W	250 mW	1206 (3216 Metric)	Automotive AEC-Q200	100 ppm/°C	1 %	2
Vishay Dale CRCW120610R0FKEC	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	Thick Film	0.6 mm	0.024 in	10 Ohms	AEC-Q200	0.25 W	250 mW	1206 (3216 Metric)	Automotive AEC-Q200	100 ppm/°C	1 %	2
Vishay Dale CRCW12068M20FKEB	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	Thick Film	0.6 mm	0.024 in	8.2 MOhms	AEC-Q200	0.25 W	250 mW	1206 (3216 Metric)	Automotive AEC-Q200	100 ppm/°C	1 %	2
Vishay Dale CRCW1206348KFKEBC	1206	155 °C	-55 °C					Thick Film			348 kOhms		0.25 W	250 mW	1206 (3216 Metric)		100 ppm/°C	1 %	2	0.026 in	0.65 mm
Vishay Dale CRCW120610R5FKTA	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	Thick Film	0.6 mm	0.024 in	10.5 Ohms	AEC-Q200	0.25 W	250 mW	1206 (3216 Metric)	Automotive AEC-Q200	100 ppm/°C	1 %	2
Vishay Dale CRCW120615R0JNTB	1206	155 °C	-55 °C	0.063 in	1.6 mm	0.126 "	3.2 mm	Thick Film	0.6 mm	0.024 in	15 Ohms	AEC-Q200	0.25 W	250 mW	1206 (3216 Metric)	Automotive AEC-Q200	200 ppm/°C	5 %	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
	Digi-Reel®	1	$ 0.45
	Tape & Reel (TR)	5000	$ 0.07

Description

General part information

CRCW1206 Series

100 Ohms ±0.5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
