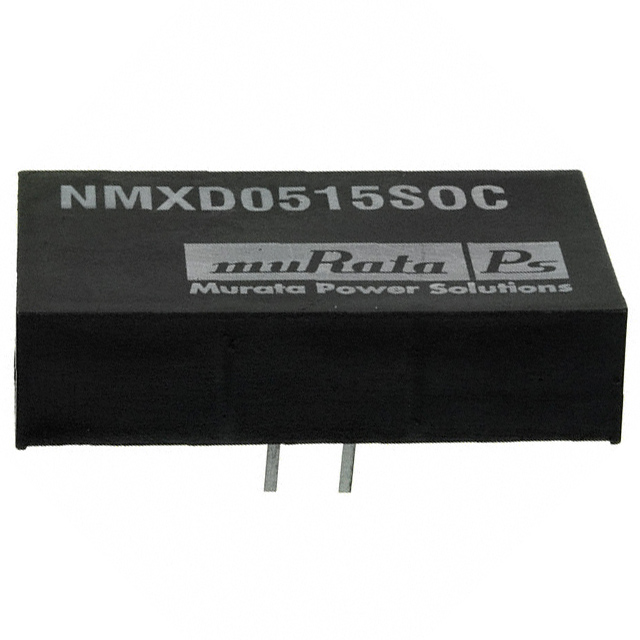

NMXD0515SOC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, REGULATED, ITE, 1:1, 5 W, 2 OUTPUT, 15 V, 200 MA
Deep-Dive with AI
Search across all available documentation for this part.
NMXD0515SOC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, REGULATED, ITE, 1:1, 5 W, 2 OUTPUT, 15 V, 200 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NMXD0515SOC | NMXD05 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | - | 208 - 500 mA |
| Current - Output (Max) | - | 208 - 235 mA |
| Current - Output (Max) | - | 500 mA |
| Efficiency | 65 % | 65 - 75 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 5-DIP Module | 5-DIP Module |
| Power (Watts) | 5 W | 5 W |
| Size / Dimension [x] | 40.4 mm | 25.1 - 40.4 mm |
| Size / Dimension [x] | 1.59 in | 0.99 - 1.59 in |
| Size / Dimension [y] | 23.6 mm | 23.6 mm |
| Size / Dimension [y] | 0.93 in | 0.93 in |
| Size / Dimension [z] | 9.9 mm | 9.9 mm |
| Size / Dimension [z] | 0.39 in | 0.39 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 15 V | 5 - 15 V |
| Voltage - Output 2 | -15 V | -15 - -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 10 | $ 48.16 | |
| 25 | $ 47.69 | |||
| 50 | $ 41.89 | |||
| 100 | $ 41.07 | |||
NMXD05 Series
DC DC CONVERTER +/-12V 5W
| Part | Applications | Voltage - Isolation | Package / Case | Mounting Type | Power (Watts) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Current - Output (Max) | Current - Output (Max) | Voltage - Input (Max) [Max] | Efficiency | Voltage - Output 2 | Type | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NMXD0512UC | ITE (Commercial) | 1000 V | 5-DIP Module | Through Hole | 5 W | 25.1 mm | 23.6 mm | 0.99 in | 0.93 in | 0.39 in | 9.9 mm | 4.5 V | 208 mA | 208 mA | 5.5 V | 75 % | -12 V | Isolated Module | 2 | 70 °C | 0 °C | 12 V | |
Murata Power Solutions Inc. NMXD0512SOC | ITE (Commercial) | 1000 V | 5-DIP Module | Through Hole | 5 W | 40.4 mm | 23.6 mm | 1.59 in | 0.93 in | 0.39 in | 9.9 mm | 4.5 V | 235 mA | 235 mA | 5.5 V | 65 % | -12 V | Isolated Module | 2 | 70 °C | 0 °C | 12 V | |
Murata Power Solutions Inc. NMXD0515SOC | ITE (Commercial) | 1000 V | 5-DIP Module | Through Hole | 5 W | 40.4 mm | 23.6 mm | 1.59 in | 0.93 in | 0.39 in | 9.9 mm | 4.5 V | 5.5 V | 65 % | -15 V | Isolated Module | 2 | 70 °C | 0 °C | 15 V | |||
Murata Power Solutions Inc. NMXD0515SOC | |||||||||||||||||||||||
Murata Power Solutions Inc. NMXD0505UC | ITE (Commercial) | 1000 V | 5-DIP Module | Through Hole | 5 W | 25.1 mm | 23.6 mm | 0.99 in | 0.93 in | 0.39 in | 9.9 mm | 4.5 V | 500 mA | 5.5 V | 75 % | -5 V | Isolated Module | 2 | 70 °C | 0 °C | 5 V | 500 mA |
Description
General part information
NMXD05 Series
The NMXD0515SOC is a 2-output 5W board-mount isolated regulated DC/DC Converter particularly suited to isolating and converting DC power rails. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The device is particularly suited for use in distributed power systems where there is low variation in the bus voltage levels.
