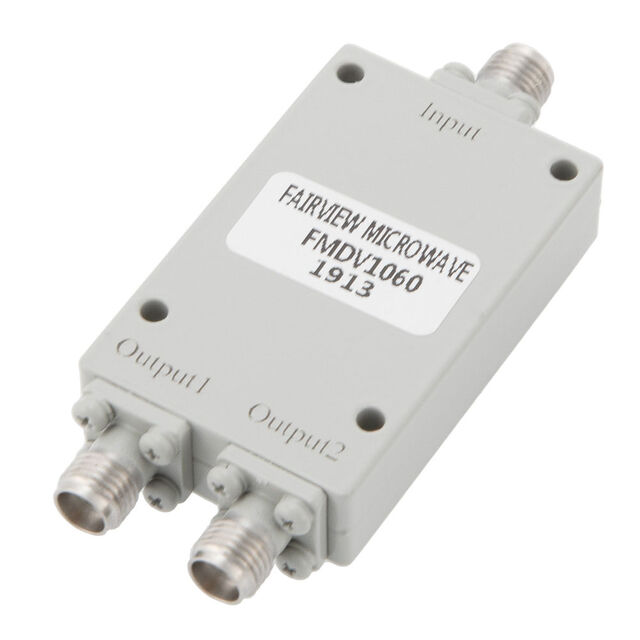

FMDV1060
ActiveFairview Microwave
POWER DIVIDER 40 GHZ 2.92MM
FMDV1060
ActiveFairview Microwave
POWER DIVIDER 40 GHZ 2.92MM
Description
General part information
FMDV1060
RF Power Divider 2 GHz ~ 40 GHz Isolation (Min) 16dB, 6° Imbalance (Max), 1.8 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMDV1060 |
|---|---|
| Frequency (Max) | 40 GHz |
| Frequency (Min) | 2 GHz |
| Imbalance (Max) | 6 ° |
| Insertion Loss | 1.8 dB |
| Isolation (Min) | 16 dB |
| Package / Case | Module |
| Size / Dimension Height | 0.404 in |
| Size / Dimension Length | 1.654 in |
| Size / Dimension Width | 1.024 in |
| VSWR (Max) | 1.8 |
