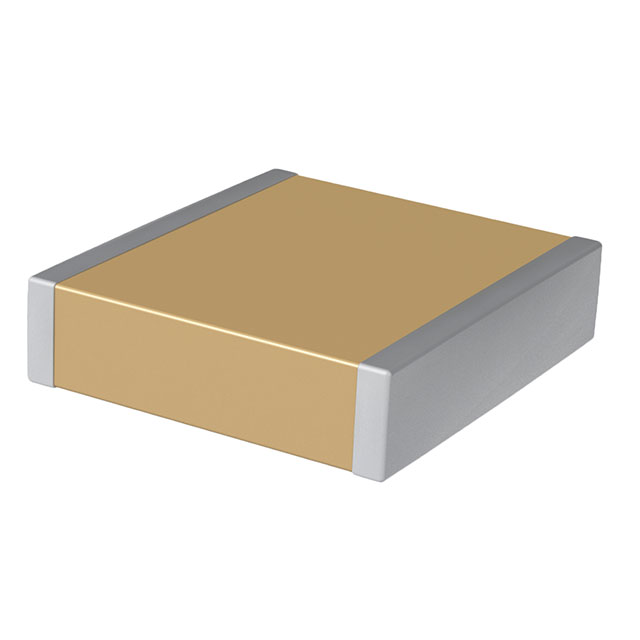

Specification	CKC21C104JWGACAUTO

Applications	Automotive
Capacitance	0.1 µF
Features	Low ESL, High Voltage, High Temperature
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	2220 (5750 Metric)
Ratings	AEC-Q200
Size / Dimension Length	0.224 in
Size / Dimension Width	0.197 in
Temperature Coefficient	NP0, C0G
Thickness (Max)	0.106 in
Tolerance	5 %
Voltage - Rated	650 V

CKC21C Series

...

Part	Thickness (Max)	Tolerance	Voltage - Rated	Features	Applications	Size / Dimension Length	Size / Dimension Width	Temperature Coefficient	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Mounting Type	Capacitance	Ratings
KEMET CKC21C622JEGAC7800	0.106 in	5 %	1200 V	High Temperature High Voltage Low ESL	General Purpose	0.224 in	0.197 in	C0G NP0	150 °C	-55 °C	2220 (5750 Metric)	MLCC Surface Mount	6200 pF
KEMET CKC21C622MCGAC7800	0.106 in	20 %	500 V	High Temperature High Voltage Low ESL	General Purpose	0.224 in	0.197 in	C0G NP0	150 °C	-55 °C	2220 (5750 Metric)	MLCC Surface Mount	6200 pF
KEMET CKC21C622MJGAC7800	0.106 in	20 %	1700 V	High Temperature High Voltage Low ESL	General Purpose	0.224 in	0.197 in	C0G NP0	150 °C	-55 °C	2220 (5750 Metric)	MLCC Surface Mount	6200 pF
KEMET CKC21C123GCGAC7210	0.106 in	2 %	500 V	High Temperature High Voltage Low ESL	General Purpose	0.224 in	0.197 in	C0G NP0	150 °C	-55 °C	2220 (5750 Metric)	MLCC Surface Mount	0.012 µF
KEMET CKC21C223GWGAC7210	0.071 in	2 %	650 V	High Temperature High Voltage Low ESL	General Purpose	0.224 in	0.197 in	C0G NP0	150 °C	-55 °C	2220 (5750 Metric)	MLCC Surface Mount	0.022 µF
KEMET CKC21C473GWGAC7800	0.061 in	2 %	650 V	High Temperature High Voltage Low ESL	General Purpose	0.224 in	0.197 in	C0G NP0	150 °C	-55 °C	2220 (5750 Metric)	MLCC Surface Mount	47 nF
KEMET CKC21C752MEGACAUTO	0.071 in	20 %	1200 V	High Temperature High Voltage Low ESL	Automotive	0.224 in	0.197 in	C0G NP0	150 °C	-55 °C	2220 (5750 Metric)	MLCC Surface Mount	7500 pF	AEC-Q200
KEMET CKC21C912MCGAC7210	0.087 in	20 %	500 V	High Temperature High Voltage Low ESL	General Purpose	0.224 in	0.197 in	C0G NP0	150 °C	-55 °C	2220 (5750 Metric)	MLCC Surface Mount	9100 pF
KEMET CKC21C822GEGAC7800	0.087 in	2 %	1200 V	High Temperature High Voltage Low ESL	General Purpose	0.224 in	0.197 in	C0G NP0	150 °C	-55 °C	2220 (5750 Metric)	MLCC Surface Mount	8200 pF
KEMET CKC21C822FEGAC7210	0.087 in	1 %	1200 V	High Temperature High Voltage Low ESL	General Purpose	0.224 in	0.197 in	C0G NP0	150 °C	-55 °C	2220 (5750 Metric)	MLCC Surface Mount	8200 pF
