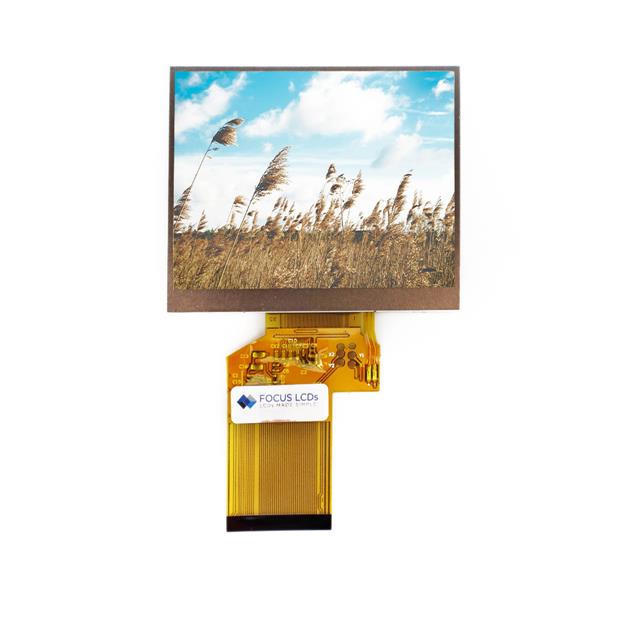

E35GF-RW350-N
ActiveFocus LCDs
3.5" TFT RGB 320 X 240
E35GF-RW350-N
ActiveFocus LCDs
3.5" TFT RGB 320 X 240
Description
General part information
E35GF-RW350-N
Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color 16-Bit/18-Bit/24-Bit RGB 3.5" (88.90mm) 320 x 240
Technical Specifications
Parameters and characteristics for this part
| Specification | E35GF-RW350-N |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | HX8238 |
| Diagonal Screen Size | 3.5 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 320 pixels |
| Dot Pixels (Vertical) | 240 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | RGB, 16-Bit/18-Bit/24-Bit RGB |
| Interface Data Width | 24 Bit, 16 Bit, 18 Bit |
| Touchscreen | Non-Touch |
| Viewing Area Height | 54.96 mm |
| Viewing Area Width | 72.88 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
