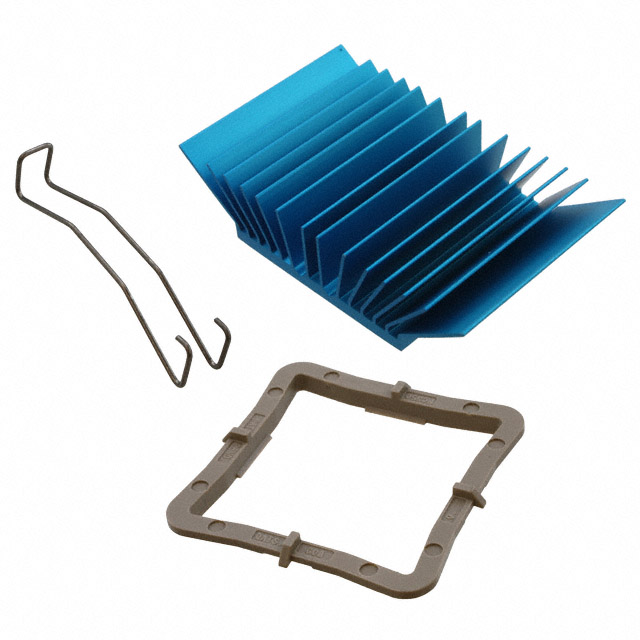

ATS-503 Series

Part	Type	Material	Material Finish	Width	Attachment Method	Package Cooled	Thermal Resistance	Shape	Fin Height	Length
Advanced Thermal Solutions Inc. ATS-50450P-C3-R0	Top Mount	Aluminum	Blue Anodized	1.772 in	Clip Thermal Material	BGA	1.6 °C/W	Angled Fins Square	0.689 in	1.772 in
Advanced Thermal Solutions Inc. ATS-50400P-C3-R0	Top Mount	Aluminum	Blue Anodized	1.575 in	Clip Thermal Material	BGA	2 °C/W	Angled Fins Square	0.689 in	1.575 in
Advanced Thermal Solutions Inc. ATS-50450G-C3-R0	Top Mount	Aluminum	Blue Anodized	1.772 in	Adhesive (Included) Thermal Tape	BGA	2.1 °C/W	Angled Fins Square	0.492 in	1.772 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
