1422759
ActivePhoenix Contact

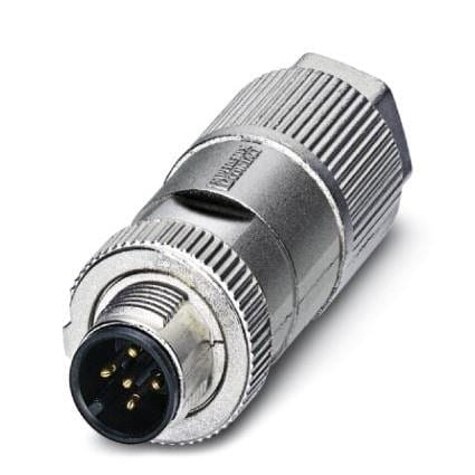

SENSOR CABLES / ACTUATOR CABLES SACC-MS- 5QO SH DNSCO
1422759
ActivePhoenix Contact
SENSOR CABLES / ACTUATOR CABLES SACC-MS- 5QO SH DNSCO
Description
General part information
1422759
5 Position Circular Connector Plug, Male Pins Spring-Cage
Technical Specifications
Parameters and characteristics for this part
| Specification | 1422759 |
|---|---|
| Backshell Material | Zinc Die Cast |
| Cable Opening (Max) | 0.382 in |
| Cable Opening (Min) | 0.197 in |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Tin |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Plating | Nickel |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Termination | Spring-Cage |
| Voltage Rating (AC) | 48 VAC |
| Voltage Rating (DC) | 60 VDC |
