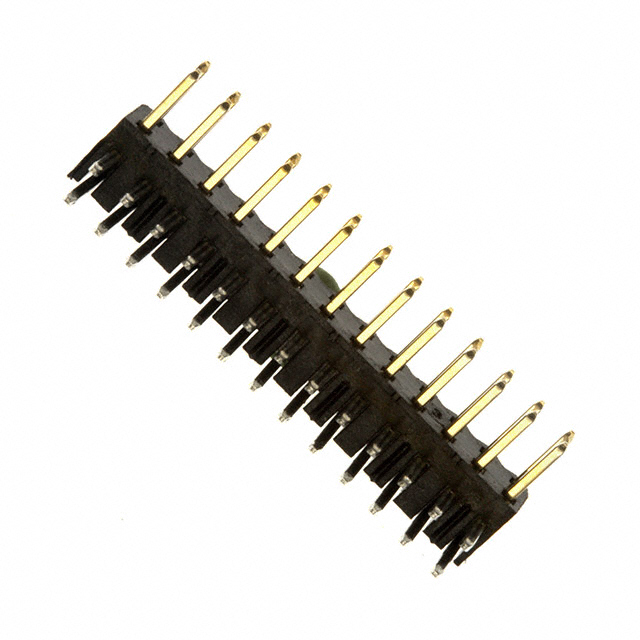

151226-7422-RB

Active

CONN HEADER R/A 26POS 2MM

Search across all available documentation for this part.

Active

CONN HEADER R/A 26POS 2MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	151226-7422-RB	151226 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.86 mm	3.86 mm
Contact Length - Mating	0.152 in	0.152 in
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [z]	0.165 in	0.06 - 0.165 in
Insulation Height [z]	4.2 mm	1.52 - 4.2 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	26	26
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	8.36 mm
Overall Contact Length	-	0.329 in
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

CONN HEADER VERT 26POS 2MM

Part	Pitch - Mating [x]	Pitch - Mating [x]	Style	Fastening Type	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Number of Rows	Shrouding	Contact Type	Number of Positions	Overall Contact Length	Overall Contact Length	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Connector Type	Number of Positions Loaded	Contact Material	Termination	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Insulation Color
3M 151226-8422-RB	0.079 in	2 mm	Board to Board, Cable	Push-Pull	Tin	105 ░C	-55 °C	30 Áin	0.76 Ám	0.06 in	1.52 mm	Gold	2	Unshrouded	Male Pin	26	8.36 mm	0.329 in	0.079 in	2 mm	Through Hole	Header	All	Copper Alloy	Solder	0.118 in	3 mm	200 µin	5.08 µm	UL94 V-0	3.86 mm	0.152 in	Square	Black
3M 151226-7422-RB	0.079 in	2 mm	Board to Board, Cable	Push-Pull	Tin	105 ░C	-55 °C	30 Áin	0.76 Ám	0.165 in	4.2 mm	Gold	2	Unshrouded	Male Pin	26			0.079 in	2 mm	Through Hole, Right Angle	Header	All	Copper Alloy	Solder	0.118 in	3 mm	200 µin	5.08 µm	UL94 V-0	3.86 mm	0.152 in	Square	Black
3M 151226-7422-TH	0.079 in	2 mm	Board to Board, Cable	Push-Pull	Tin-Lead	105 ░C	-55 °C	15 µin	0.38 µm	0.165 in	4.2 mm	Gold	2	Unshrouded	Male Pin	26			0.079 in	2 mm	Through Hole, Right Angle	Header	All	Copper Alloy	Solder	0.118 in	3 mm	200 µin	5.08 µm	UL94 V-0	3.86 mm	0.152 in	Square	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm)
