704.095.010

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.095.010	704.095 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Actuator Type	Selector	Selector
Illumination	Non-Illuminated	Illuminated, Non-Illuminated
Panel Cutout Dimensions	30.5 mm	22.3 - 30.5 mm
Requires	Contact Block(s)	Illumination Source, Contact Block(s)
Type	Momentary	Momentary

CONFIG SW BODY SELECTOR ILLUM

Part	Illumination	Type	Panel Cutout Dimensions	(Select First, Then Apply Filters) Compatible Series	Requires	Actuator Type
EAO 704.095.0I	Illuminated	Momentary	22.3 mm	04, EAO	Contact Block(s), Illumination Source	Selector
EAO 704.095.018I	Illuminated	Momentary	30.5 mm	04, EAO	Contact Block(s), Illumination Source	Selector
EAO 704.095.010	Non-Illuminated	Momentary	30.5 mm	04, EAO	Contact Block(s)	Selector
EAO 704.095.0	Non-Illuminated	Momentary	22.3 mm	04, EAO	Contact Block(s)	Selector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

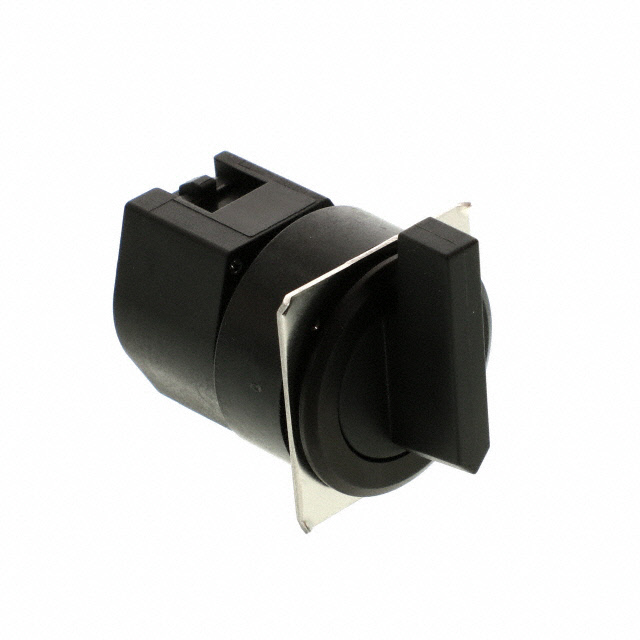

Configurable Switch Body Selector Non-Illuminated

Technical documentation and resources
