UPD70F3746GJ(R)-GAE-AX
ActiveIC MCU 32BIT 1MB FLASH 144LQFP
Deep-Dive with AI
Search across all available documentation for this part.
UPD70F3746GJ(R)-GAE-AX
ActiveIC MCU 32BIT 1MB FLASH 144LQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UPD70F3746GJ(R)-GAE-AX | UPD703746 Series |
|---|---|---|
| Connectivity | EBI/EMI, UART/USART, I2C, CSI | EBI/EMI, UART/USART, I2C, CSI |
| Core Processor | V850ES | V850ES |
| Core Size | 32-Bit | 32-Bit |
| Data Converters | D/A 2x8b, A/D 16x10b SAR | D/A 2x8b, A/D 16x10b SAR |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 128 | 128 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |

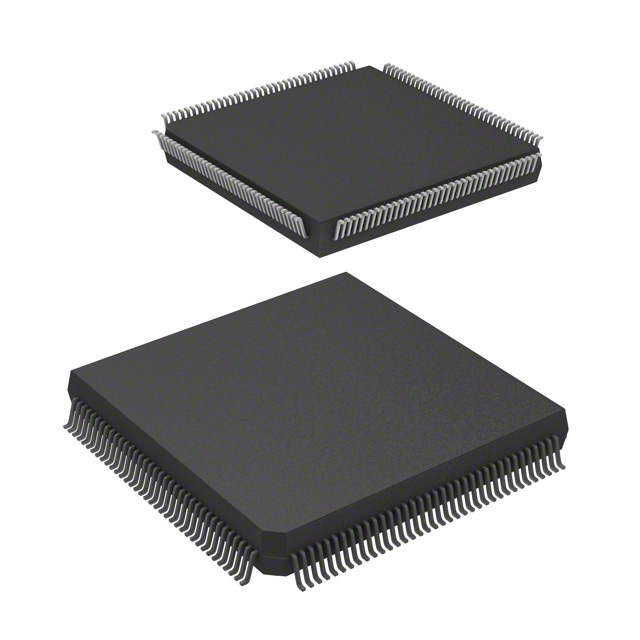

| Package / Case | 144-LQFP | 144-LQFP |
| Peripherals | WDT, DMA, LVD, PWM | WDT, DMA, LVD, PWM |
| Program Memory Size | 1 MB | 1 MB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 60 K | 60 K |
| Speed | 32 MHz | 32 MHz |
| Supplier Device Package | 144-LQFP (20x20) | 144-LQFP (20x20) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.85 V | 2.85 V |
UPD703746 Series
IC MCU 32BIT 1MB FLASH 144LQFP
| Part | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Program Memory Size | Peripherals | RAM Size | Program Memory Type | Number of I/O | Core Size | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Data Converters | Oscillator Type | Speed | Core Processor | Mounting Type | Connectivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation UPD70F3746GJ-GAE-M1-AX | 3.6 V | 2.85 V | 1 MB | DMA, LVD, PWM, WDT | 60 K | FLASH | 128 | 32-Bit | 85 °C | -40 °C | 144-LQFP (20x20) | 144-LQFP | A/D 16x10b SAR, D/A 2x8b | Internal | 32 MHz | V850ES | Surface Mount | CSI, EBI/EMI, I2C, UART/USART |
Renesas Electronics Corporation UPD70F3746GJ(R)-GAE-AX | 3.6 V | 2.85 V | 1 MB | DMA, LVD, PWM, WDT | 60 K | FLASH | 128 | 32-Bit | 85 °C | -40 °C | 144-LQFP (20x20) | 144-LQFP | A/D 16x10b SAR, D/A 2x8b | Internal | 32 MHz | V850ES | Surface Mount | CSI, EBI/EMI, I2C, UART/USART |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 120 | $ 18.73 | |
Description
General part information
UPD703746 Series
The V850ES/Jx3 is a 32-bit single-chip microcontroller that includes the V850ES CPU core and peripheral functions such as ROM/RAM, a timer/counter, serial interfaces, an A/D converter, and a D/A converter and enables an extremely high cost-performance for applications that require low power consumption, such as home audio, printers, and digital home electronics.
