MULP40-1358

Active

EOS Power

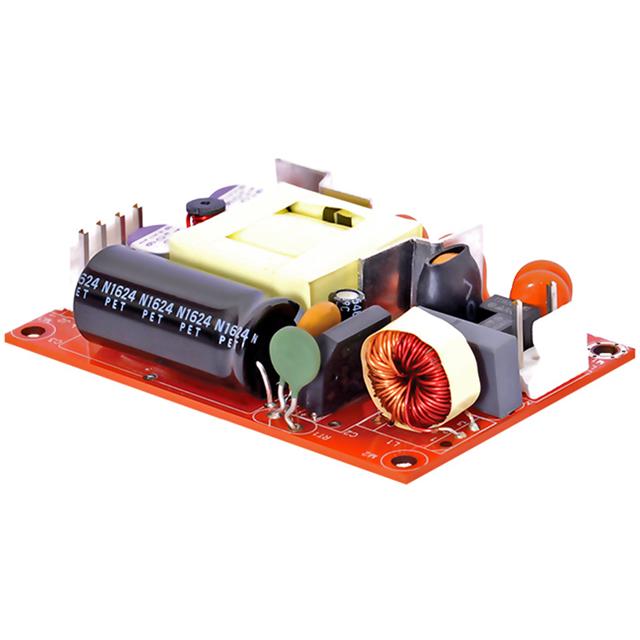

AC/DC CONVERTER 58V 40W

Deep-Dive with AI

Search across all available documentation for this part.

MULP40-1358

Active

EOS Power

AC/DC CONVERTER 58V 40W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.19
		5	$ 27.50
		10	$ 26.80
		25	$ 25.91
		50	$ 25.25
		100	$ 24.61
		250	$ 23.79

Description

General part information

MULP40 Series

Open Frame AC DC Converters 1 Output 58V 85 ~ 264 VAC, 390VDC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MULP40-1358	MULP40 Series

Applications	Medical	Medical
Approval Agency	cUL, CE, UL, CB, NEMKO	cUL, CE, UL, CB, NEMKO
Current - Output 1	690 mA	1.33 - 830 A
Efficiency	85 %	85 %
Features	Universal Input, Standby Output	Universal Input, Standby Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	40 W	25 - 40 W
Size / Dimension [x]	3 "	3 "
Size / Dimension [x]	76.2 mm	76.2 mm
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [y]	2 in	2 in
Size / Dimension [z]	0.75 in	0.75 - 0.97 in
Size / Dimension [z]	19.1 mm	19.1 - 24.7 mm
Type	Open Frame	Open Frame
Voltage - Input	390 VDC	390 VDC
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	-	5 - 48 V

MULP40 Series

AC/DC CONVERTER 15V 40W

Part	Approval Agency	Type	Mounting Type	Number of Outputs	Voltage - Output 1	Features	Voltage - Input [Max]	Voltage - Input	Voltage - Input [Min]	Applications	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 1	Efficiency	Voltage - Isolation
EOS Power MULP40-1215	CB, CE, cUL, NEMKO, UL	Open Frame	Chassis Mount	1	15 V	Standby Output, Universal Input	264 VAC	390 VDC	85 VAC	Medical	40 W	50.8 mm	76.2 mm	24.7 mm	2 in	0.97 in	3 "	2.67 A	85 %	4000 V
EOS Power MULP40-1030	CB, CE, cUL, NEMKO, UL	Open Frame	Chassis Mount	1	30 V	Standby Output, Universal Input	264 VAC	390 VDC	85 VAC	Medical	40 W	50.8 mm	76.2 mm	19.1 mm	2 in	0.75 in	3 "	1.33 A	85 %	4000 V
EOS Power MULP40-1024	CB, CE, cUL, NEMKO, UL	Open Frame	Chassis Mount	1	24 V	Standby Output, Universal Input	264 VAC	390 VDC	85 VAC	Medical	40 W	50.8 mm	76.2 mm	19.1 mm	2 in	0.75 in	3 "	1.67 A	85 %	4000 V
EOS Power MULP40-1048	CB, CE, cUL, NEMKO, UL	Open Frame	Chassis Mount	1	48 V	Standby Output, Universal Input	264 VAC	390 VDC	85 VAC	Medical	40 W	50.8 mm	76.2 mm	19.1 mm	2 in	0.75 in	3 "	830 mA	85 %	4000 V
EOS Power MULP40-1015	CB, CE, cUL, NEMKO, UL	Open Frame	Chassis Mount	1	15 V	Standby Output, Universal Input	264 VAC	390 VDC	85 VAC	Medical	40 W	50.8 mm	76.2 mm	19.1 mm	2 in	0.75 in	3 "	2.67 A	85 %	4000 V
EOS Power MULP40-1305	CB, CE, cUL, NEMKO, UL	Open Frame	Chassis Mount	1	5 V	Standby Output, Universal Input	264 VAC	390 VDC	85 VAC	Medical	25 W	50.8 mm	76.2 mm	19.1 mm	2 in	0.75 in	3 "	5 A	85 %	4000 V
EOS Power MULP40-1005	CB, CE, cUL, NEMKO, UL	Open Frame	Chassis Mount	1	5 V	Standby Output, Universal Input	264 VAC	390 VDC	85 VAC	Medical	25 W	50.8 mm	76.2 mm	19.1 mm	2 in	0.75 in	3 "	5 A	85 %	4000 V
EOS Power MULP40-1324	CB, CE, cUL, NEMKO, UL	Open Frame	Chassis Mount	1	24 V	Standby Output, Universal Input	264 VAC	390 VDC	85 VAC	Medical	40 W	50.8 mm	76.2 mm	19.1 mm	2 in	0.75 in	3 "	1.67 A	85 %	4000 V
EOS Power MULP40-1312	CB, CE, cUL, NEMKO, UL	Open Frame	Chassis Mount	1	12 V	Standby Output, Universal Input	264 VAC	390 VDC	85 VAC	Medical	40 W	50.8 mm	76.2 mm	19.1 mm	2 in	0.75 in	3 "	3.33 A	85 %	4000 V
EOS Power MULP40-1348	CB, CE, cUL, NEMKO, UL	Open Frame	Chassis Mount	1	48 V	Standby Output, Universal Input	264 VAC	390 VDC	85 VAC	Medical	40 W	50.8 mm	76.2 mm	19.1 mm	2 in	0.75 in	3 "	830 mA	85 %	4000 V
