56.OA43.2421C
ActiveAltech Corporation

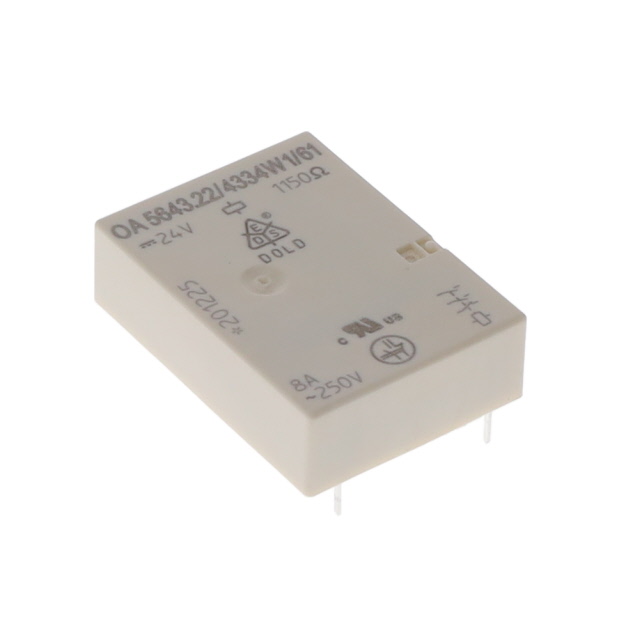

OA5643 24VDC2NO/1NC CONTACTS AGS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
56.OA43.2421C
ActiveAltech Corporation
OA5643 24VDC2NO/1NC CONTACTS AGS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 56.OA43.2421C | 56.OA43 Series |
|---|---|---|
| - | - | |
| Coil Current | 20.9 mA | 20.9 mA |
| Coil Resistance | 1.15 kOhms | 1.15 kOhms |
| Coil Voltage | 24 VDC | 24 VDC |
| Contact Form | 3PST-2NO/1NC (2 Form A, 1 Form B) | 3PST-2NO/1NC (2 Form A, 1 Form B) |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) | Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A | 8 A |
| Mounting Type | Through Hole | Through Hole |
| Must Operate Voltage | 16.8 VDC | 16.8 VDC |
| Operate Time | 15 ms | 15 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Release Time | 5 ms | 5 ms |
| Switching Voltage [Max] | 250 VDC, 400 VAC | 250 - 400 VDC |
| Termination Style | PC Pin | PC Pin |
56.OA43 Series
OA5643 12VDC2NO/1NC CONTACTS AGS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Coil Resistance | Contact Form | Contact Material | Contact Rating (Current) | Must Operate Voltage | Coil Current | Switching Voltage [Max] | Mounting Type | Release Time | Operate Time | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Altech Corporation 56.OA43.1221C | ||||||||||||||
Altech Corporation 56.OA43.2121N | ||||||||||||||
Altech Corporation 56.OA43.1121S | ||||||||||||||
Altech Corporation 56.OA43.2121S | ||||||||||||||
Altech Corporation 56.OA43.6021N | ||||||||||||||
Altech Corporation 56.OA43.6021C | ||||||||||||||
Altech Corporation 56.OA43.2121C | ||||||||||||||
Altech Corporation 56.OA43.1121C | ||||||||||||||
Altech Corporation 56.OA43.1121N | ||||||||||||||
Altech Corporation 56.OA43.4821S |
