YB26WCKW01-5D-JD

Active

NKK SWITCHES

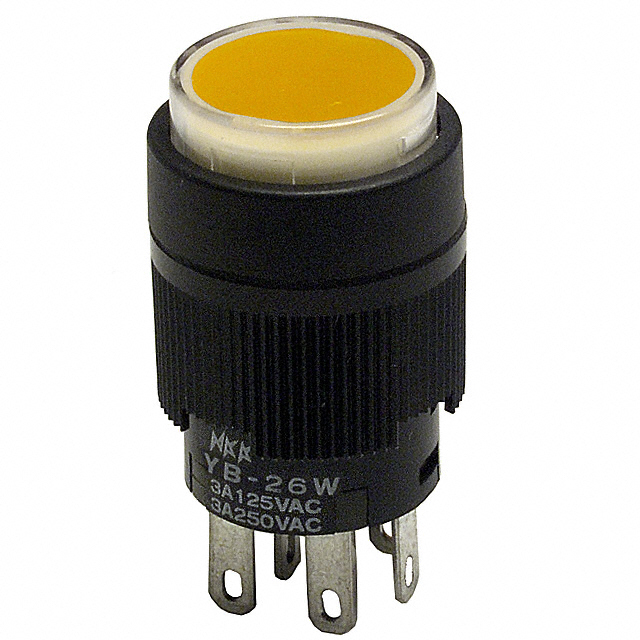

PUSHBUTTON SWITCH, YB SERIES, 16 MM, DPDT, ON-ON, ROUND, TRANSPARENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsYB Series Datasheet +1

YB26WCKW01-5D-JD

Active

NKK SWITCHES

PUSHBUTTON SWITCH, YB SERIES, 16 MM, DPDT, ON-ON, ROUND, TRANSPARENT

Deep-Dive with AI

DocumentsYB Series Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.88
		10	$ 24.41
		100	$ 21.26
Newark	Each	1	$ 47.13
		5	$ 42.03
		10	$ 40.60
		25	$ 38.36
		50	$ 35.70
		100	$ 31.62
		250	$ 28.36

Description

General part information

YB26WC Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

YB Series

Datasheet

Technical Data Sheet EN

Datasheet

Specification	YB26WCKW01-5D-JD	YB26WC Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button, Plunger for Cap
Circuit	DPDT	DPDT
Color - Actuator/Cap	Clear	Clear, Clear (Red Filter/Diffuser), Yellow (White Filter/Diffuser), Red
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	100000 Cycles	100000 Cycles
Features	Voltage Reduction Lighting	Voltage Reduction Lighting
Illumination Type, Color	Amber, LED	Amber, LED, Red, Green/Red, Green, Blue, White
Illumination Voltage (Nominal)	2 VDC	1.9 - 24 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles	200000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	50 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-On	On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, PC Pin
Termination Style	2.8 mm	2.8 mm
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

Part

Actuator Type

Electrical Life

Features

Switch Function

Mechanical Life

Current Rating (Amps)

Illumination Type, Color

Color - Actuator/Cap

Illumination Voltage (Nominal)

Type

Voltage Rating - DC

Operating Temperature [Max]

Operating Temperature [Min]

Mounting Type

Termination Style

Ingress Protection

Circuit

Panel Cutout Dimensions [diameter]

Actuator Marking

Voltage Rating - AC

NKK SWITCHES

YB26WCKW01-5D-JB

Button, Round

100000 Cycles

Voltage Reduction Lighting

On-On

200000 Cycles

3 A

Amber, LED

Clear

2 VDC

Illuminated, Standard

30 V

50 °C

-25 °C

Panel Mount, Front

0.11 in

Quick Connect, Solder

2.8 mm

IP65 - Dust Tight, Water Resistant

DPDT

16 mm

No Marking

125 V

NKK SWITCHES

YB26WCKW01

Plunger for Cap

100000 Cycles

Voltage Reduction Lighting

On-On

200000 Cycles

3 A

Standard

30 V

70 °C

-25 °C

Panel Mount, Front

0.11 in

Quick Connect, Solder

2.8 mm

IP65 - Dust Tight, Water Resistant

DPDT

16 mm

No Marking

125 V

NKK SWITCHES

YB26WCKW01-5C-JB

Button, Round

100000 Cycles

Voltage Reduction Lighting

On-On

200000 Cycles

3 A

LED, Red

Clear

1.9 VDC

Illuminated, Standard

30 V

50 °C

-25 °C

Panel Mount, Front

0.11 in

Quick Connect, Solder

2.8 mm

IP65 - Dust Tight, Water Resistant

DPDT

16 mm

No Marking

125 V

NKK SWITCHES

YB26WCKG01-2CF24-JB

Button, Round

100000 Cycles

Voltage Reduction Lighting

On-On

200000 Cycles

0.4 VA

Green/Red, LED

Clear

24 V

Illuminated, Standard

28 V

50 °C

-25 °C

Panel Mount, Front

0.11 in

Quick Connect, Solder

2.8 mm

IP65 - Dust Tight, Water Resistant

DPDT

16 mm

No Marking

28 V

NKK SWITCHES

YB26WCKG01

Plunger for Cap

100000 Cycles

Voltage Reduction Lighting

On-On

200000 Cycles

0.4 VA

Standard

28 V

70 °C

-25 °C

Panel Mount, Front

0.11 in

Quick Connect, Solder

2.8 mm

IP65 - Dust Tight, Water Resistant

DPDT

16 mm

No Marking

28 V

NKK SWITCHES

YB26WCKW01-2CF24-JB

Button, Round

100000 Cycles

Voltage Reduction Lighting

On-On

200000 Cycles

3 A

Green/Red, LED

Clear

24 V

Illuminated, Standard

30 V

50 °C

-25 °C

Panel Mount, Front

0.11 in

Quick Connect, Solder

2.8 mm

IP65 - Dust Tight, Water Resistant

DPDT

16 mm

No Marking

125 V

NKK SWITCHES

YB26WCKW01-5F-JB

Button, Round

100000 Cycles

Voltage Reduction Lighting

On-On

200000 Cycles

3 A

Green, LED

Clear

2.2 VDC

Illuminated, Standard

30 V

50 °C

-25 °C

Panel Mount, Front

0.11 in

Quick Connect, Solder

2.8 mm

IP65 - Dust Tight, Water Resistant

DPDT

16 mm

No Marking

125 V

NKK SWITCHES

YB26WCKW01-5C-JC

Button, Round

100000 Cycles

Voltage Reduction Lighting

On-On

200000 Cycles

3 A

LED, Red

Clear (Red Filter/Diffuser)

1.9 VDC

Illuminated, Standard

30 V

50 °C

-25 °C

Panel Mount, Front

0.11 in

Quick Connect, Solder

2.8 mm

IP65 - Dust Tight, Water Resistant

DPDT

16 mm

No Marking

125 V

NKK SWITCHES

YB26WCKW01-5F12-JB

Button, Round

100000 Cycles

Voltage Reduction Lighting

On-On

200000 Cycles

3 A

Green, LED

Clear

12 VDC

Illuminated, Standard

30 V

50 °C

-25 °C

Panel Mount, Front

0.11 in

Quick Connect, Solder

2.8 mm

IP65 - Dust Tight, Water Resistant

DPDT

16 mm

No Marking

125 V

NKK SWITCHES

YB26WCKW01-5D24-JD

Button, Round

100000 Cycles

Voltage Reduction Lighting

On-On

200000 Cycles

3 A

Amber, LED

Clear

24 V

Illuminated, Standard

30 V

50 °C

-25 °C

Panel Mount, Front

0.11 in

Quick Connect, Solder

2.8 mm

IP65 - Dust Tight, Water Resistant

DPDT

16 mm

No Marking

125 V

Part	Actuator Type	Electrical Life	Features	Switch Function	Mechanical Life	Current Rating (Amps)	Illumination Type, Color	Color - Actuator/Cap	Illumination Voltage (Nominal)	Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Termination Style	Termination Style	Ingress Protection	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - AC
NKK SWITCHES YB26WCKW01-5D-JB	Button, Round	100000 Cycles	Voltage Reduction Lighting	On-On	200000 Cycles	3 A	Amber, LED	Clear	2 VDC	Illuminated, Standard	30 V	50 °C	-25 °C	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	DPDT	16 mm	No Marking	125 V
NKK SWITCHES YB26WCKW01	Plunger for Cap	100000 Cycles	Voltage Reduction Lighting	On-On	200000 Cycles	3 A				Standard	30 V	70 °C	-25 °C	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	DPDT	16 mm	No Marking	125 V
NKK SWITCHES YB26WCKW01-5C-JB	Button, Round	100000 Cycles	Voltage Reduction Lighting	On-On	200000 Cycles	3 A	LED, Red	Clear	1.9 VDC	Illuminated, Standard	30 V	50 °C	-25 °C	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	DPDT	16 mm	No Marking	125 V
NKK SWITCHES YB26WCKG01-2CF24-JB	Button, Round	100000 Cycles	Voltage Reduction Lighting	On-On	200000 Cycles	0.4 VA	Green/Red, LED	Clear	24 V	Illuminated, Standard	28 V	50 °C	-25 °C	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	DPDT	16 mm	No Marking	28 V
NKK SWITCHES YB26WCKG01	Plunger for Cap	100000 Cycles	Voltage Reduction Lighting	On-On	200000 Cycles	0.4 VA				Standard	28 V	70 °C	-25 °C	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	DPDT	16 mm	No Marking	28 V
NKK SWITCHES YB26WCKW01-2CF24-JB	Button, Round	100000 Cycles	Voltage Reduction Lighting	On-On	200000 Cycles	3 A	Green/Red, LED	Clear	24 V	Illuminated, Standard	30 V	50 °C	-25 °C	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	DPDT	16 mm	No Marking	125 V
NKK SWITCHES YB26WCKW01-5F-JB	Button, Round	100000 Cycles	Voltage Reduction Lighting	On-On	200000 Cycles	3 A	Green, LED	Clear	2.2 VDC	Illuminated, Standard	30 V	50 °C	-25 °C	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	DPDT	16 mm	No Marking	125 V
NKK SWITCHES YB26WCKW01-5C-JC	Button, Round	100000 Cycles	Voltage Reduction Lighting	On-On	200000 Cycles	3 A	LED, Red	Clear (Red Filter/Diffuser)	1.9 VDC	Illuminated, Standard	30 V	50 °C	-25 °C	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	DPDT	16 mm	No Marking	125 V
NKK SWITCHES YB26WCKW01-5F12-JB	Button, Round	100000 Cycles	Voltage Reduction Lighting	On-On	200000 Cycles	3 A	Green, LED	Clear	12 VDC	Illuminated, Standard	30 V	50 °C	-25 °C	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	DPDT	16 mm	No Marking	125 V
NKK SWITCHES YB26WCKW01-5D24-JD	Button, Round	100000 Cycles	Voltage Reduction Lighting	On-On	200000 Cycles	3 A	Amber, LED	Clear	24 V	Illuminated, Standard	30 V	50 °C	-25 °C	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	IP65 - Dust Tight, Water Resistant	DPDT	16 mm	No Marking	125 V
