RR1BA-UAC24V

Active

IDEC Corporation

RELAY PLUG-IN SPDT 10A 24VAC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RR1BA-UAC24V

Active

IDEC Corporation

RELAY PLUG-IN SPDT 10A 24VAC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.42
		10	$ 14.35
		25	$ 13.59
		50	$ 13.05
		100	$ 12.53
		250	$ 11.88
		500	$ 11.40
Newark	Each	1	$ 16.80
		10	$ 16.14
		100	$ 15.49

Description

General part information

RR1BA-U Series

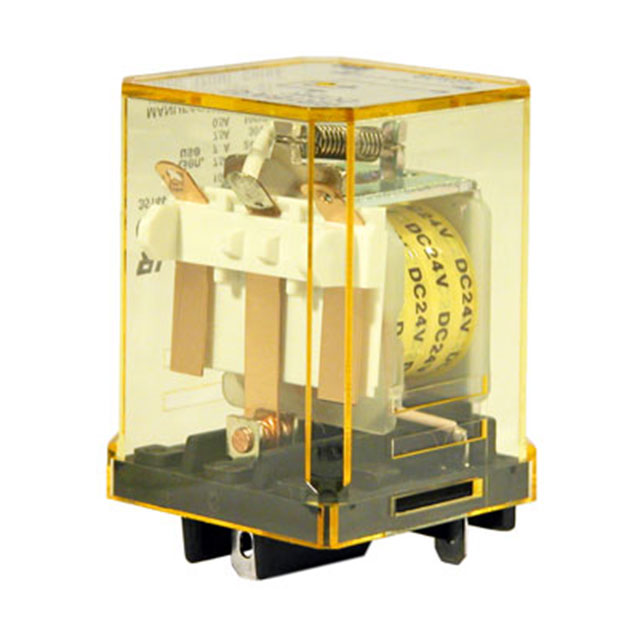

General Purpose Relay SPDT (1 Form C) 24VAC Coil Socketable

Documents

Technical documentation and resources

Datasheet

Specification	RR1BA-UAC24V	RR1BA-U Series

Approval Agency	CSA, TUV, cURus, CE	CSA, TUV, cURus, CE
Coil Current	105 mA	10.5 - 420 mA
Coil Resistance	79 Ohms	1.6 - 400 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VAC	6 - 240 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver (Ag)	Silver (Ag)
Contact Rating (Current)	10 A	10 A
Features	-	Test Button, Lighted Indicator
Load - Max Switching	300 W, 2400 VA	300 - 2400 W
Mounting Type	Socketable	Socketable, Chassis Mount
Must Operate Voltage	19.2 VAC	4.8 - 192 VDC
Must Release Voltage	7.2 VAC	0.6 - 72 VDC
Operate Time	25 ms	25 ms
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	25 ms	25 ms
Switching Voltage	30 VDC, 240 VAC	30 - 240 VDC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)	Plug In, Quick Connect - 0.187" (4.7mm), Quick Connect - 0.187" (4.7mm)

Part

Must Operate Voltage

Contact Form

Operate Time

Operating Temperature [Min]

Operating Temperature [Max]

Features

Mounting Type

Coil Type

Load - Max Switching

Termination Style

Approval Agency

Coil Current

Switching Voltage

Release Time

Contact Material

Must Release Voltage

Relay Type

Coil Voltage

Coil Resistance

Contact Rating (Current)

IDEC Corporation

RR1BA-UCDC24V

19.2 VDC

SPDT (1 Form C)

25 ms

-25 °C

40 °C

Test Button

Socketable

Non Latching

300 W, 2400 VA

Plug In, Quick Connect - 0.187" (4.7mm)

CE, CSA, cURus, TUV

60 mA

30 VDC, 240 VAC

25 ms

Silver (Ag)

2.4 VDC

General Purpose

24 VDC

400 Ohms

10 A

IDEC Corporation

RR1BA-USDC110V

88 VDC

SPDT (1 Form C)

25 ms

-25 °C

40 °C

Chassis Mount

Non Latching

300 W, 2400 VA

Quick Connect - 0.187" (4.7mm)

CE, CSA, cURus, TUV

13 mA

30 VDC, 240 VAC

25 ms

Silver (Ag)

11 VDC

General Purpose

110 VDC

8.46 kOhms

10 A

IDEC Corporation

RR1BA-UDC12V

9.6 VDC

SPDT (1 Form C)

25 ms

-25 °C

40 °C

Socketable

Non Latching

300 W, 2400 VA

Plug In, Quick Connect - 0.187" (4.7mm)

CE, CSA, cURus, TUV

120 mA

30 VDC, 240 VAC

25 ms

Silver (Ag)

1.2 VDC

General Purpose

12 VDC

100 Ohms

10 A

IDEC Corporation

RR1BA-UCDC12V

9.6 VDC

SPDT (1 Form C)

25 ms

-25 °C

40 °C

Test Button

Socketable

Non Latching

300 W, 2400 VA

Plug In, Quick Connect - 0.187" (4.7mm)

CE, CSA, cURus, TUV

120 mA

30 VDC, 240 VAC

25 ms

Silver (Ag)

1.2 VDC

General Purpose

12 VDC

100 Ohms

10 A

IDEC Corporation

RR1BA-USAC12V

9.6 VAC/DC

SPDT (1 Form C)

25 ms

-25 °C

40 °C

Chassis Mount

Non Latching

300 W, 2400 VA

Quick Connect - 0.187" (4.7mm)

CE, CSA, cURus, TUV

210 mA

30 VDC, 240 VAC

25 ms

Silver (Ag)

3.6 VAC

General Purpose

12 VAC/DC

18 Ohms

10 A

IDEC Corporation

RR1BA-USAC24V

19.2 VAC

SPDT (1 Form C)

25 ms

-25 °C

40 °C

Chassis Mount

Non Latching

300 W, 2400 VA

Quick Connect - 0.187" (4.7mm)

CE, CSA, cURus, TUV

105 mA

30 VDC, 240 VAC

25 ms

Silver (Ag)

7.2 VAC

General Purpose

24 VAC

79 Ohms

10 A

IDEC Corporation

RR1BA-ULCDC24V

19.2 VDC

SPDT (1 Form C)

25 ms

-25 °C

40 °C

Lighted Indicator, Test Button

Socketable

Non Latching

300 W, 2400 VA

Plug In, Quick Connect - 0.187" (4.7mm)

CE, CSA, cURus, TUV

60 mA

30 VDC, 240 VAC

25 ms

Silver (Ag)

2.4 VDC

General Purpose

24 VDC

400 Ohms

10 A

IDEC Corporation

RR1BA-USDC24V

19.2 VDC

SPDT (1 Form C)

25 ms

-25 °C

40 °C

Chassis Mount

Non Latching

300 W, 2400 VA

Quick Connect - 0.187" (4.7mm)

CE, CSA, cURus, TUV

60 mA

30 VDC, 240 VAC

25 ms

Silver (Ag)

2.4 VDC

General Purpose

24 VDC

400 Ohms

10 A

IDEC Corporation

RR1BA-ULCAC24V

19.2 VAC

SPDT (1 Form C)

25 ms

-25 °C

40 °C

Lighted Indicator, Test Button

Socketable

Non Latching

300 W, 2400 VA

Plug In, Quick Connect - 0.187" (4.7mm)

CE, CSA, cURus, TUV

105 mA

30 VDC, 240 VAC

25 ms

Silver (Ag)

7.2 VAC

General Purpose

24 VAC

79 Ohms

10 A

IDEC Corporation

RR1BA-UDC6V

4.8 VDC

SPDT (1 Form C)

25 ms

-25 °C

40 °C

Socketable

Non Latching

300 W, 2400 VA

Plug In, Quick Connect - 0.187" (4.7mm)

CE, CSA, cURus, TUV

240 mA

30 VDC, 240 VAC

25 ms

Silver (Ag)

0.6 VDC

General Purpose

25 Ohms

10 A

Part	Must Operate Voltage	Contact Form	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Coil Type	Load - Max Switching	Termination Style	Approval Agency	Coil Current	Switching Voltage	Release Time	Contact Material	Must Release Voltage	Relay Type	Coil Voltage	Coil Resistance	Contact Rating (Current)
IDEC Corporation RR1BA-UCDC24V	19.2 VDC	SPDT (1 Form C)	25 ms	-25 °C	40 °C	Test Button	Socketable	Non Latching	300 W, 2400 VA	Plug In, Quick Connect - 0.187" (4.7mm)	CE, CSA, cURus, TUV	60 mA	30 VDC, 240 VAC	25 ms	Silver (Ag)	2.4 VDC	General Purpose	24 VDC	400 Ohms	10 A
IDEC Corporation RR1BA-USDC110V	88 VDC	SPDT (1 Form C)	25 ms	-25 °C	40 °C		Chassis Mount	Non Latching	300 W, 2400 VA	Quick Connect - 0.187" (4.7mm)	CE, CSA, cURus, TUV	13 mA	30 VDC, 240 VAC	25 ms	Silver (Ag)	11 VDC	General Purpose	110 VDC	8.46 kOhms	10 A
IDEC Corporation RR1BA-UDC12V	9.6 VDC	SPDT (1 Form C)	25 ms	-25 °C	40 °C		Socketable	Non Latching	300 W, 2400 VA	Plug In, Quick Connect - 0.187" (4.7mm)	CE, CSA, cURus, TUV	120 mA	30 VDC, 240 VAC	25 ms	Silver (Ag)	1.2 VDC	General Purpose	12 VDC	100 Ohms	10 A
IDEC Corporation RR1BA-UCDC12V	9.6 VDC	SPDT (1 Form C)	25 ms	-25 °C	40 °C	Test Button	Socketable	Non Latching	300 W, 2400 VA	Plug In, Quick Connect - 0.187" (4.7mm)	CE, CSA, cURus, TUV	120 mA	30 VDC, 240 VAC	25 ms	Silver (Ag)	1.2 VDC	General Purpose	12 VDC	100 Ohms	10 A
IDEC Corporation RR1BA-USAC12V	9.6 VAC/DC	SPDT (1 Form C)	25 ms	-25 °C	40 °C		Chassis Mount	Non Latching	300 W, 2400 VA	Quick Connect - 0.187" (4.7mm)	CE, CSA, cURus, TUV	210 mA	30 VDC, 240 VAC	25 ms	Silver (Ag)	3.6 VAC	General Purpose	12 VAC/DC	18 Ohms	10 A
IDEC Corporation RR1BA-USAC24V	19.2 VAC	SPDT (1 Form C)	25 ms	-25 °C	40 °C		Chassis Mount	Non Latching	300 W, 2400 VA	Quick Connect - 0.187" (4.7mm)	CE, CSA, cURus, TUV	105 mA	30 VDC, 240 VAC	25 ms	Silver (Ag)	7.2 VAC	General Purpose	24 VAC	79 Ohms	10 A
IDEC Corporation RR1BA-ULCDC24V	19.2 VDC	SPDT (1 Form C)	25 ms	-25 °C	40 °C	Lighted Indicator, Test Button	Socketable	Non Latching	300 W, 2400 VA	Plug In, Quick Connect - 0.187" (4.7mm)	CE, CSA, cURus, TUV	60 mA	30 VDC, 240 VAC	25 ms	Silver (Ag)	2.4 VDC	General Purpose	24 VDC	400 Ohms	10 A
IDEC Corporation RR1BA-USDC24V	19.2 VDC	SPDT (1 Form C)	25 ms	-25 °C	40 °C		Chassis Mount	Non Latching	300 W, 2400 VA	Quick Connect - 0.187" (4.7mm)	CE, CSA, cURus, TUV	60 mA	30 VDC, 240 VAC	25 ms	Silver (Ag)	2.4 VDC	General Purpose	24 VDC	400 Ohms	10 A
IDEC Corporation RR1BA-ULCAC24V	19.2 VAC	SPDT (1 Form C)	25 ms	-25 °C	40 °C	Lighted Indicator, Test Button	Socketable	Non Latching	300 W, 2400 VA	Plug In, Quick Connect - 0.187" (4.7mm)	CE, CSA, cURus, TUV	105 mA	30 VDC, 240 VAC	25 ms	Silver (Ag)	7.2 VAC	General Purpose	24 VAC	79 Ohms	10 A
IDEC Corporation RR1BA-UDC6V	4.8 VDC	SPDT (1 Form C)	25 ms	-25 °C	40 °C		Socketable	Non Latching	300 W, 2400 VA	Plug In, Quick Connect - 0.187" (4.7mm)	CE, CSA, cURus, TUV	240 mA	30 VDC, 240 VAC	25 ms	Silver (Ag)	0.6 VDC	General Purpose		25 Ohms	10 A
