MAP130-1012

Active

Bel Power Solutions

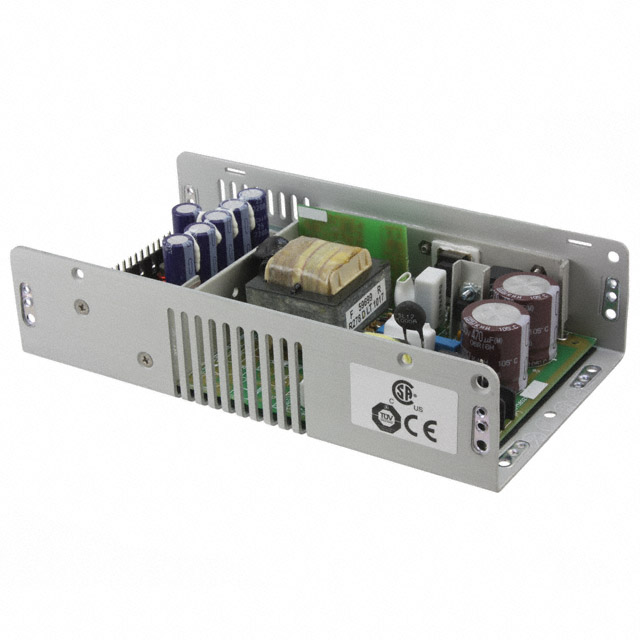

AC/DC CONVERTER 12V 130W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 130W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 132 VAC, 175 ~ 264 VAC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	MAP130-1012	MAP130 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cCSAus, CE, CB	cCSAus, CE, CB
Current - Output 1	12 A	6.2 - 20 A
Current - Output 2	-	5 A
Current - Output 4	-	1 - 3 A
Efficiency	80 %	80 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	130 W	130 W
Size / Dimension [x]	215.9 mm	215.9 mm
Size / Dimension [x]	8.5 in	8.5 in
Size / Dimension [y]	114.3 mm	114.3 mm
Size / Dimension [y]	4.5 in	4.5 in
Size / Dimension [z]	2 "	2 "
Size / Dimension [z]	50.8 mm	50.8 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC, 132 VAC	132 - 264 VAC
Voltage - Input [Min]	90 VAC, 175 VAC	90 - 175 VAC
Voltage - Isolation	2.6 kV	2.6 kV
Voltage - Output 1	12 V	5 - 24 V
Voltage - Output 2	-	12 V
Voltage - Output 3	-	-12 - -5 V
Voltage - Output 4	-	12 V

AC/DC CNVRT 5V 12V -5V -12V 130W

Part	Current - Output 1	Features	Current - Output 2	Efficiency	Number of Outputs	Power (Watts)	Operating Temperature [Max]	Voltage - Output 2	Type	Mounting Type	Applications	Current - Output 4	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Voltage - Output 1	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 3	Voltage - Output 4
Bel Power Solutions MAP130-4010G	20 A	Adjustable Output, Remote Sense, Universal Input	5 A	80 %	4	130 W	70 °C	12 V	Open Frame	Chassis Mount	ITE (Commercial)	3 A	2 "	114.3 mm	50.8 mm	215.9 mm	8.5 in	4.5 in	CB, cCSAus, CE	5 V	2.6 kV	132 VAC, 264 VAC	90 VAC, 175 VAC	-5 V
Bel Power Solutions MAP130-4002G	20 A	Adjustable Output, Remote Sense, Universal Input	5 A	80 %	4	130 W	70 °C	12 V	Open Frame	Chassis Mount	ITE (Commercial)	1 A	2 "	114.3 mm	50.8 mm	215.9 mm	8.5 in	4.5 in	CB, cCSAus, CE	5 V	2.6 kV	132 VAC, 264 VAC	90 VAC, 175 VAC	-12 V	12 V
Bel Power Solutions MAP130-1012	12 A	Adjustable Output, Remote Sense, Universal Input		80 %	1	130 W	70 °C		Open Frame	Chassis Mount	ITE (Commercial)		2 "	114.3 mm	50.8 mm	215.9 mm	8.5 in	4.5 in	CB, cCSAus, CE	12 V	2.6 kV	132 VAC, 264 VAC	90 VAC, 175 VAC
