2EDL4CM
ObsoleteTE Connectivity Raychem Cable Protection
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
2EDL4CM
ObsoleteTE Connectivity Raychem Cable Protection
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2EDL4CM |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, SEV, CSA, SEMKO |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 2 A |
| Current Rating - Filter | 2 A |
| Features | Voltage Selector |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.5 mm |
| Panel Cutout Dimensions [y] | 55.91 mm |
| Panel Thickness [Max] | 0.126 in |
| Panel Thickness [Max] | 3.2 mm |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
| Termination | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2EDL Series

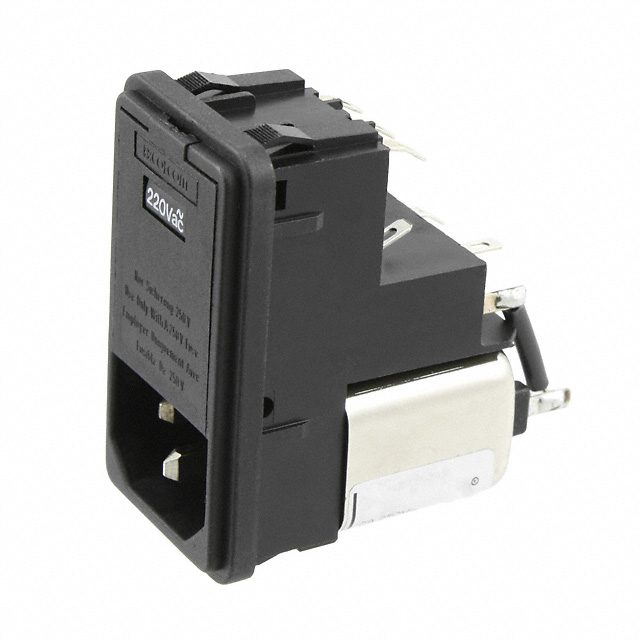

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
