1013988
ActivePhoenix Contact

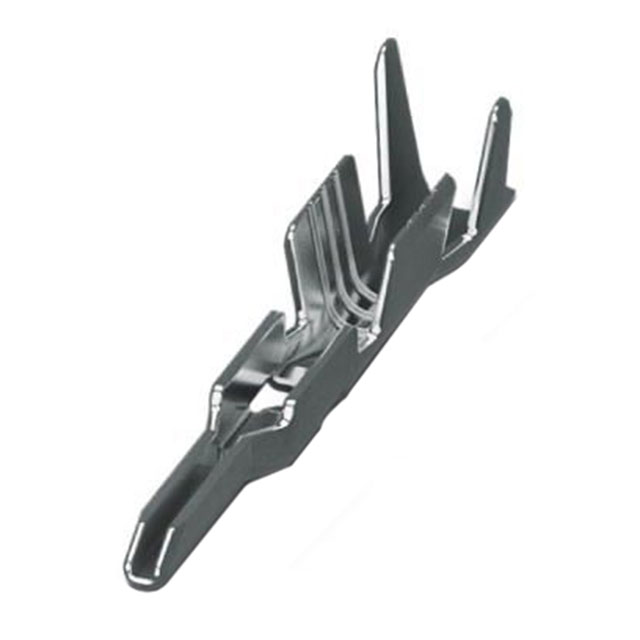

CONTACT PIN CRIMP 20-26AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1013988
ActivePhoenix Contact
CONTACT PIN CRIMP 20-26AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1013988 | PTCM-MP-P Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin, Socket |
| Wire Gauge [Max] | 0.5 mm² | 0.5 - 0.75 mm² |
| Wire Gauge [Min] | 0.14 mm² | 0.14 - 0.34 mm² |
PTCM-MP-P Series
CONTACT PIN CRIMP ST CABLE MOUNT 20-26AWG LOOSE
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Contact Termination | Contact Finish |
|---|---|---|---|---|---|
Phoenix Contact 1013990 | 0.14 mm² | 0.5 mm² | Pin | Crimp | Tin |
Phoenix Contact 1013987 | 0.34 mm˛ | 0.75 mm˛ | Pin | Crimp | Tin |
Phoenix Contact 1013988 | 0.14 mm² | 0.5 mm² | Pin | Crimp | Tin |
Phoenix Contact 1013989 | 0.34 mm˛ | 0.75 mm˛ | Pin | Crimp | Tin |
Phoenix Contact 1013781 | 0.14 mm² | 0.5 mm² | Socket | Crimp | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.09 | |||
| 1000 | $ 0.09 | |||
| 2500 | $ 0.09 | |||
| Tape & Reel (TR) | 5000 | $ 0.09 | ||
Description
General part information
PTCM-MP-P Series
Contact Crimp Pin 0.14-0.5mm˛ Tin
