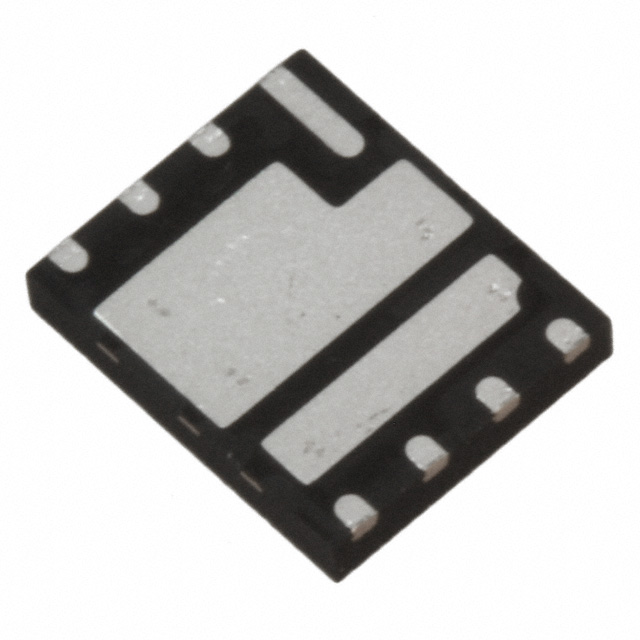

IRFH4253DTRPBF

Infineon Technologies

STRONGIRFET™ N+N DUAL POWER MOSFET 25 V ; POWERSTAGE 5X6 TISON-8 PACKAGE; 1.1 MOHM; SCHOTTKY

Search across all available documentation for this part.

Infineon Technologies

STRONGIRFET™ N+N DUAL POWER MOSFET 25 V ; POWERSTAGE 5X6 TISON-8 PACKAGE; 1.1 MOHM; SCHOTTKY

Technical Specifications

Parameters and characteristics for this part

Specification	IRFH4253DTRPBF

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C [Max]	145 A
Current - Continuous Drain (Id) @ 25°C [Min]	64 A
Drain to Source Voltage (Vdss)	25 V
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs [Max]	15 nC
Input Capacitance (Ciss) (Max) @ Vds	1314 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerVDFN
Power - Max	50 W, 31 W
Rds On (Max) @ Id, Vgs	3.2 mOhm
Supplier Device Package	PQFN (5x6)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.1 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Configuration	Power - Max	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C [Min]	Current - Continuous Drain (Id) @ 25°C [Max]	Mounting Type	Package / Case	FET Feature	Technology	Rds On (Max) @ Id, Vgs	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds
Infineon Technologies IRFH4253DTRPBF	-55 °C	150 °C	15 nC	2 N-Channel (Dual)	31 W 50 W	25 V	2.1 V	64 A	145 A	Surface Mount	8-PowerVDFN	Logic Level Gate	MOSFET (Metal Oxide)	3.2 mOhm	PQFN (5x6)	1314 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 25V 64A, 145A 31W, 50W Surface Mount PQFN (5x6)
