A 16-LC-TR

Active

Assmann WSW Components

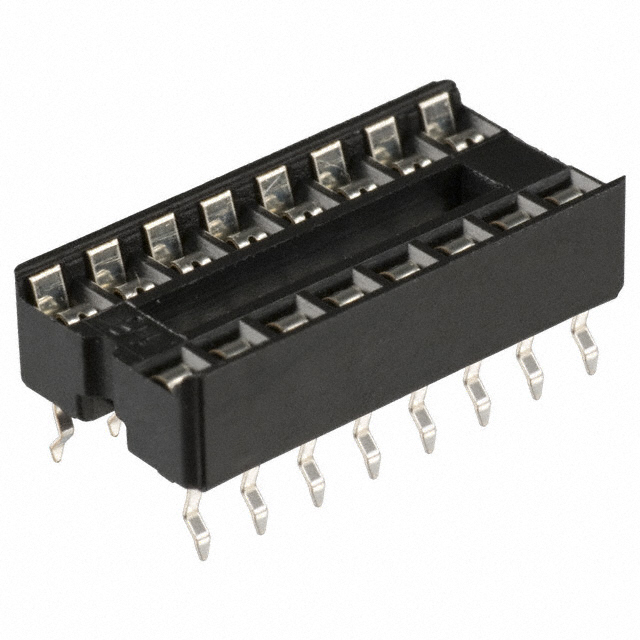

CONN IC DIP SOCKET 16POS TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN IC DIP SOCKET 16POS TIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A 16-LC-TR	A 16-LC Series

Contact Finish - Post	Tin	Tin
Contact Material - Mating	Phosphor Bronze	Phosphor Bronze
Contact Material - Post	Phosphor Bronze	Phosphor Bronze
Contact Resistance	30 mOhm	30 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	16	16
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.15 mm	3.15 mm
Termination Post Length	0.124 in	0.124 in
Type	0.3 "	0.3 "
Type	7.62 mm	7.62 mm
Type	DIP	DIP

CONN IC DIP SOCKET 16POS TIN

Part	Contact Material - Post	Contact Resistance	Current Rating (Amps)	Contact Material - Mating	Type	Type	Type	Contact Finish - Post	Material Flammability Rating	Pitch - Post	Pitch - Post	Housing Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions or Pins (Grid)	Termination	Mounting Type	Termination Post Length	Termination Post Length	Pitch - Mating	Pitch - Mating
Assmann WSW Components A 16-LC-TR	Phosphor Bronze	30 mOhm	1 A	Phosphor Bronze	0.3 "	7.62 mm	DIP	Tin	UL94 V-0	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Open Frame	85 °C	-55 °C	16	Solder	Through Hole	3.15 mm	0.124 in	0.1 in	2.54 mm
Assmann WSW Components A 16-LC-TT	Phosphor Bronze	30 mOhm	1 A	Phosphor Bronze	0.3 "	7.62 mm	DIP	Tin	UL94 V-0	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Open Frame	85 °C	-55 °C	16	Solder	Through Hole	3.15 mm	0.124 in	0.1 in	2.54 mm
