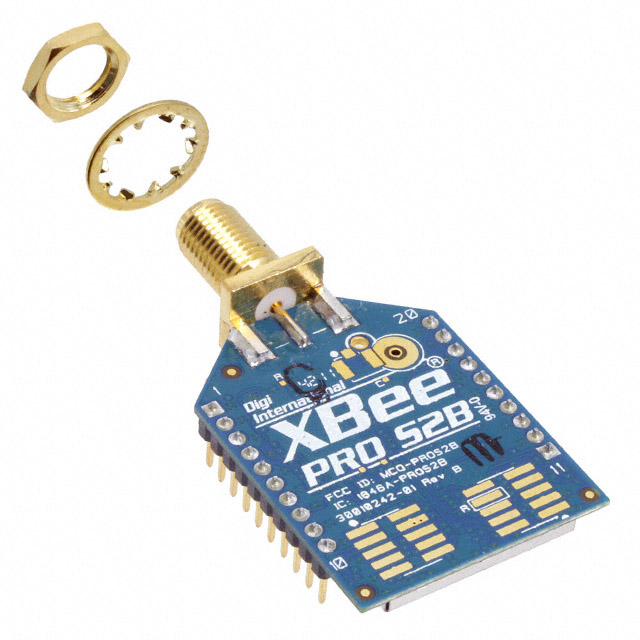

XBP24BZ7SIT-002

Obsolete

Digi

RF TXRX MOD 802.15.4RPSMA TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMap Your Digi XBee IoT Network with Digi XCTU Datasheet +1

XBP24BZ7SIT-002

Obsolete

Digi

RF TXRX MOD 802.15.4RPSMA TH

Deep-Dive with AI

DocumentsMap Your Digi XBee IoT Network with Digi XCTU Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XBP24BZ7SIT-002

Antenna Type	Antenna Not Included, RP-SMA
Current - Receiving [Max]	62 mA
Current - Receiving [Min]	47 mA
Current - Transmitting [Max]	220 mA
Current - Transmitting [Min]	205 mA
Data Rate	250 KBd
Frequency	2.4 GHz
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	18 dBm
Protocol	Zigbee®
RF Family/Standard	802.15.4
Sensitivity	-102 dBm
Serial Interfaces	UART, SPI
Utilized IC / Part	EM357
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

XBP24BZ7 Series

Part	Current - Receiving [Min]	Current - Receiving [Max]	Data Rate	Mounting Type	Serial Interfaces	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Output	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Package / Case	Frequency	Current - Transmitting [Max]	Current - Transmitting [Min]	Antenna Type	Protocol	Utilized IC / Part	Memory Size
Digi XBP24BZ7PIT-001J	47 mA	62 mA	250 KBd	Through Hole	SPI UART	2.7 V	3.6 V	10 dBm	802.15.4	85 °C	-40 °C	-102 dBm	Module	2.4 GHz	132 mA	117 mA	Integrated Trace	Zigbee®	EM357
Digi XBP24BZ7UIT-001	47 mA	62 mA	250 KBd	Through Hole	SPI UART	2.7 V	3.6 V	18 dBm	802.15.4	85 °C	-40 °C	-102 dBm	Module	2.4 GHz	220 mA	205 mA	Antenna Not Included U.FL	Zigbee®	EM357
Digi XBP24BZ7PIT-002J	47 mA	62 mA	250 KBd	Through Hole	SPI UART	2.7 V	3.6 V	10 dBm	802.15.4	85 °C	-40 °C	-102 dBm	Module	2.4 GHz	132 mA	117 mA	Integrated Trace	Zigbee®	EM357
Digi XBP24BZ7SIT-004	47 mA	62 mA	250 KBd	Through Hole	SPI UART	2.7 V	3.6 V	18 dBm	802.15.4	85 °C	-40 °C	-102 dBm	Module	2.4 GHz	220 mA	205 mA	Antenna Not Included RP-SMA	Zigbee®	EM357
Digi XBP24BZ7SITB003J	47 mA	62 mA	250 KBd	Through Hole	SPI UART	2.7 V	3.6 V	10 dBm	802.15.4	85 °C	-40 °C	-102 dBm	Module	2.4 GHz	132 mA	117 mA	Antenna Not Included RP-SMA	Zigbee®	EM357	2 kB 32 kB
Digi XBP24BZ7UITA003	47 mA	62 mA	250 KBd	Through Hole	SPI UART	2.7 V	3.6 V	18 dBm	802.15.4	85 °C	-40 °C	-102 dBm	Module	2.4 GHz	220 mA	205 mA	Antenna Not Included U.FL	Zigbee®	EM357	2 kB 32 kB
Digi XBP24BZ7UIT-004J	47 mA	62 mA	250 KBd	Through Hole	SPI UART	2.7 V	3.6 V	10 dBm	802.15.4	85 °C	-40 °C	-102 dBm	Module	2.4 GHz	132 mA	117 mA	Antenna Not Included U.FL	Zigbee®	EM357
Digi XBP24BZ7UITA001	47 mA	62 mA	250 KBd	Through Hole	SPI UART	2.7 V	3.6 V	18 dBm	802.15.4	85 °C	-40 °C	-102 dBm	Module	2.4 GHz	220 mA	205 mA	Antenna Not Included U.FL	Zigbee®	EM357	2 kB 32 kB
Digi XBP24BZ7WITB003	47 mA	62 mA	250 KBd	Through Hole	SPI UART	2.7 V	3.6 V	18 dBm	802.15.4	85 °C	-40 °C	-102 dBm	Module	2.4 GHz	220 mA	205 mA	Integrated Wire Antenna	Zigbee®	EM357	2 kB 32 kB
Digi XBP24BZ7PIT-001	47 mA	62 mA	250 KBd	Through Hole	SPI UART	2.7 V	3.6 V	18 dBm	802.15.4	85 °C	-40 °C	-102 dBm	Module	2.4 GHz	220 mA	205 mA	Integrated Trace	Zigbee®	EM357

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XBP24BZ7 Series

802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, RP-SMA Through Hole
