9610 0601000

Active

Belden Inc.

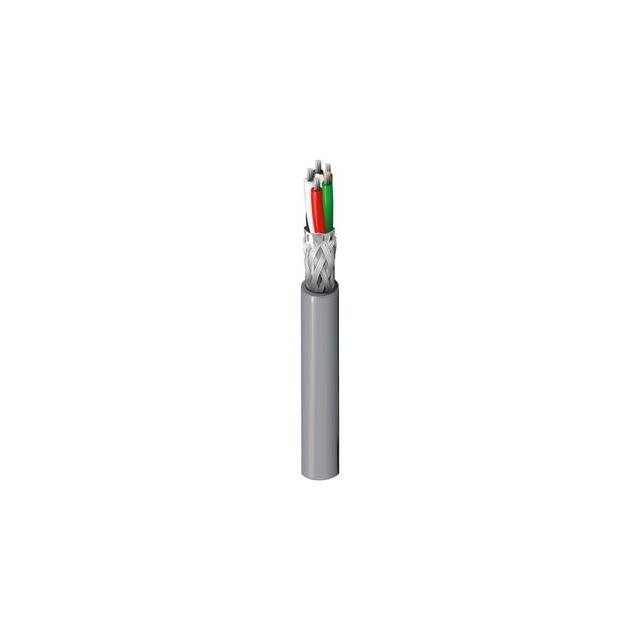

CABLE 5COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9610 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	5.46 mm
Jacket (Insulation) Diameter [diameter]	0.215 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.914 mm
Jacket (Insulation) Thickness	0.036 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	5
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Jacket (Insulation) Material	Conductor Insulation	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Conductor Material	Shield Material	Shield Coverage	Ratings	Length [x]	Length [x]	Length	Length	Voltage
Belden Inc. 9610 060100	5.46 mm	0.215 in	Multi-Conductor	Braid Foil	-30 ░C	80 C	Chrome	32 AWG	7	Computer	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	24 AWG	0.914 mm	0.036 in	5	Copper Tinned	Aluminum Copper Tinned	65 % 100 %	UL Style 2464	30.5 m	100 ft
Belden Inc. 9610 0601000	5.46 mm	0.215 in	Multi-Conductor	Braid Foil	-30 ░C	80 C	Chrome	32 AWG	7	Computer	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	24 AWG	0.914 mm	0.036 in	5	Copper Tinned	Aluminum Copper Tinned	65 % 100 %	UL Style 2464			1000 ft	304.8 m	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.16

General part information

5 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 1000.0' (304.8m)
